| 特性概要 | |
| 动态范围 | 10 bit |
| 分辨率 | 720×540 (0.4 MP) |
| 帧率 | 120 fps |
| 视频输出格式 | 10-Bit Monochrome |
| 接口 (光学) | |
| 传感器类型 | CMOS Pregius |
| 传感器规格 | Sony IMX297 |
| 快门 | 全局 |
| 规格 | 1/2.9 inch |
| 像素 | 水平: 6.9 µm, 垂直: 6.9 µm |
| 镜头接口 | M12x0.5 |
| 接口 (电子) | |
| 接口 | The Imaging Source MIPI CSI-2 Sensor Board Connector |
| 供应电压 | 4.75 VDC 至 5.25 VDC |
| 消耗电流 | 大约 185 mA @ 5 VDC |
| 自动光圈控制 | |
| 触发器 | |
| 输入/输出 | |
| 接口 (机械) | |
| 尺寸 | 高: 30 mm, 宽: 30 mm, 长: 5.45 mm |
| 重量 | 4 g |
| 调整 | |
| 快门 | 1 µs 至 1 s |
| 增益 | 0 dB 至 48 dB |
| 环境 | |
| 温度 (作业) | -5 °C 至 45 °C |
| 温度 (储存) | -20 °C 至 60 °C |
| 湿度 (作业) | 20 % 至 80 % (非冷凝) |
| 湿度 (储存) | 20 % 至 95 % (非冷凝) |
| 依实际情形调整更动 | |
 |
Industrial Cameras: Spectral Sensitivity | | 1.30 | 11月 2017 |
 |
Mark&Technik: Development Kits für Embedded Vision | | 1.0 | 9月 2020 |
 |
MIPI Sensor Board Connector | | 1.0 | 2月 2021 |
 |
Dimensional Diagrams 2.0 for all Industrial Board Cameras | | 2.0 | 10月 2015 |
 |
Datasheet for Sony IMX297LLR CMOS Sensor | | 1.0 | 3月 2023 |
 |
STEP File (DxM 36MX296-ML, DxM 36MX297-ML) | | 1.00 | 4月 2021 |
 |
The Imaging Source 2022 Catalog | | 2022.08 | 8月 2022 |
 |

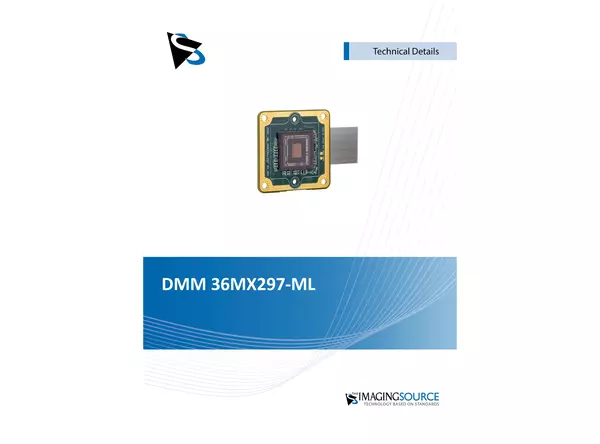

DMM 36MX297-ML Technical Reference Manual | | 1.1 | 12月 2021 |
 |
