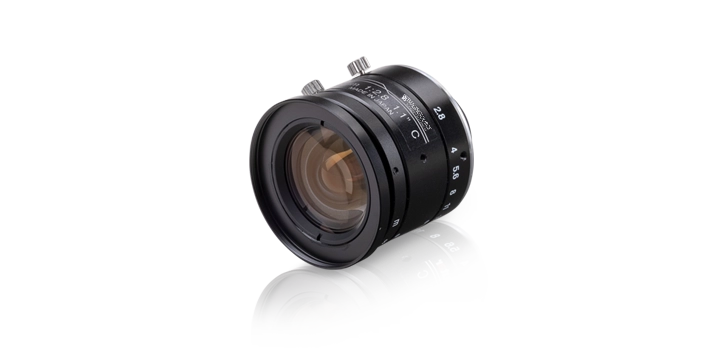

高端镜头

高性能、低失真、C 型接口镜头

坚固的机械设计和低于2%的图像失真确保最高的数据精度。

高端镜头
产品代码 规格 接口 焦距 光圈范围 最小物距 直径 长度 重量 滤光片螺纹 制造商 PDF STEP
FL-BC1220-9M 1 " C 12 mm 2 - 16 0.08 m 42 mm 60.5 mm 156 g M40.5×0.5 mm Ricoh
FL-BC1618-9M 1 " C 16 mm 1.8 - 16 0.08 m 42 mm 64 mm 153 g M40.5×0.5 mm Ricoh
FL-BC2518-9M 1 " C 25 mm 1.8 - 16 0.1 m 42 mm 57.5 mm 149 g M40.5×0.5 mm Ricoh
FL-BC3518-9M 1 " C 35 mm 1.8 - 22 0.15 m 42 mm 60.5 mm 150 g M40.5×0.5 mm Ricoh
FL-BC5024-9M 1 " C 50 mm 2.4 - 22 0.2 m 42 mm 69 mm 166 g M40.5×0.5 mm Ricoh
FL-BC7528-9M 1 " C 75 mm 2.8 - 32 0.25 m 42 mm 81 mm 189 g M40.5×0.5 mm Ricoh
M111FM08 1.1 " C 8 mm 1.8 - 22 0.3 m 80 mm 96.8 mm 490 g M77×0.75 mm Tamron
M111FM16 1.1 " C 16 mm 1.8 - 22 0.3 m 57 mm 94.9 mm 385 g M55×0.75 mm Tamron
M111FM25 1.1 " C 25 mm 1.8 - 22 0.3 m 57 mm 97.3 mm 415 g M55×0.75 mm Tamron
M111FM50 1.1 " C 25 mm 1.8 - 22 0.4 m 51 mm 94.7 mm 415 g M49×0.75 mm Tamron
V0826-MPZ 1 " C 8 mm 2.6 - 16 0.1 m 69.5 mm 52.93 mm 203.1 g 不适用 Computar
V1226-MPZ 1 " C 12 mm 2.6 - 16 0.1 m 39 mm 43.5 mm 98.4 g M37.5×0.5 mm Computar
V1624-MPZ 1 " C 16 mm 2.4 - 16 0.1 m 39.5 mm 47 mm 108.1 g M35.5×0.5 mm Computar
V2520-MPZ 1 " C 25 mm 2 - 16 0.15 m 37.5 mm 35.5 mm 73.1 g M35.5×0.5 mm Computar
V3522-MPZ 1 " C 35 mm 2.2 - 16 0.2 m 39.5 mm 55.7 mm 118.2 g M34×0.5 mm Computar
V5024-MPZ 1 " C 50 mm 2.4 - 16 0.2 m 42 mm 60.1 mm 138.5 g M30.5×0.5 mm Computar
Dimension 2.8/8 C 4/3 " C 8 mm 2.8 - 22 0.1 m 86 mm 63 mm 376 g 不适用 Zeiss
Dimension 2/12 C 4/3 " C 12 mm 2 - 22 0.1 m 64 mm 60 mm 264 g M43×0.75 mm Zeiss
Dimension 2/18 C 4/3 " C 18 mm 2 - 22 0.09 m 63 mm 65.2 mm 291 g M43×0.75 mm Zeiss
Dimension 2/25 C 4/3 " C 25 mm 2 - 22 0.15 m 64 mm 60 mm 283 g M43×0.75 mm Zeiss
Dimension 2/35 C 4/3 " C 35 mm 2 - 22 0.2 m 64 mm 70 mm 323 g M49×0.75 mm Zeiss
Dimension 2/50 C 4/3 " C 50 mm 2 - 22 0.3 m 64 mm 69 mm 306 g M49×0.75 mm Zeiss

依实际情形调整更动
