Board cameras

Board-level Cameras from The Imaging Source

Designed for demanding, price-sensitive machine vision projects, The Imaging Source's board-level cameras ensure easy integration and long-term availability.

Tried and tested, The Imaging Source board-level cameras are optimized for cost-sensitive, high-volume machine vision projects and offer maximum flexibility for a wide range of space-limited applications.

The Imaging Source's broad portfolio of industrial board-level cameras feature a range of CMOS sensors including Sony's latest Pregius and STARVIS sensors as well as cost-optimized sensors from ON Semiconductor. The board cameras' USB3 Vision, GigE Vision and GeniCam compliance ensures quick integration with third-party hardware and nearly all image processing libraries.

Learn more about our board camera families below, or contact one of our machine vision experts today.

Contact us

  • Latest CMOS sensors: ON Semi and Sony including Pregius (global shutter) and STARVIS (rolling shutter)
  • Cost-effective design: for M12 mini-lenses (S-mount), yet also compatible with C/CS-mount lenses
  • Resolutions: 0.4 MP to 12 MP with highest image quality and high frame rates
  • Free SDKs and end-user software: free software for the latest Windows and Linux Releases
  • Interfaces: wide range of interfaces and connector types; USB3 Vision, GigE Vision and GeniCam compliant
  • Triggers & I/Os: Hardware and software trigger as well as I/Os for demanding machine vision applications
  • Warranty and long-term availability: 3-year warranty with continuous support

A Quick Guide to The Imaging Source's Board Camera Families

37 Series

USB 3.1 single-board cameras: imaging for virtually every machine vision application

37 Series Board Cameras: USB 3.1 (type-C) Interface

As with our 37 series industrial cameras, the board-level versions feature Sony's STARVIS and Pregius sensors - the first sensors developed by Sony especially for industrial applications. These USB3-Vision and GeniCam-compliant board-level cameras deliver excellent image quality suitable for demanding machine vision tasks - making them a cost-effective solution for a range of applications such as intelligent traffic systems (ITS), optical inspection, medical engineering, logistics and more. The cameras' small footprint (with PCB dimensions as small as 30 x 30 x 15 mm) and reversible Type-C port allow for easy integration into space-constrained designs.

2 Series (One4All USB 2.0)

Single-board cameras ideal for cost-sensitive USB 2.0 and OEM applications

The Imaging Source's USB 2.0 board cameras feature ON Semiconductor CMOS sensors with resolutions ranging from 0.4 to 5MP and are the perfect choice for very cost-sensitive USB 2.0 machine vision projects. The small board-level form factor creates maximum flexibility for a wide range of space-limited applications. Equipped with a broad feature set (e.g. binning, windowing and high-speed readout), these cameras deliver a substantial reduction in image noise levels and provide exceptional image quality even in poor or fluctuating lighting conditions. Specific models are available with a variety of input, output, strobe and trigger options. Cameras from the 2 Series are also available in a housed version.

USB 2.0 Board Cameras: Connector Placement Versatility

More Board Cameras from The Imaging Source

27 series

The 37 series predecessor

27 Series Board Cameras: USB 3.0 Interface

The Imaging Source 27 Series USB 3.0 board cameras feature reliable CMOS sensors from ON Semi with resolutions from 1.2 to 10.7 MP. These board-level cameras produce a high-quality video stream and high frame rates. Hardware features include digital I/O, strobe, binning and ROI. Cameras from the 27 Series are also available as housed cameras.

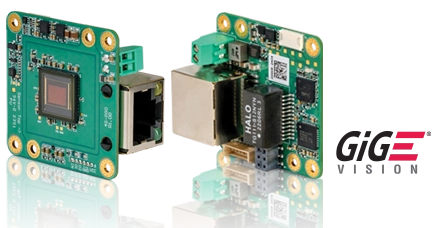

25 Series

GigE board camera series

These GigE board-level cameras offer small PCB dimensions (45 x 45 x 20 mm) and are perfect for a wide variety of industrial automation, quality assurance and surveillance applications requiring a GigE interface. In addition to unsurpassed data transmission and cable lengths of up to 100 meters offered by the GigE interface, performance-enhancing features available on the CMOS cameras such as binning, windowing and high-speed readout, dramatically reduce image noise levels.

25 Series Board Cameras: GigE Interface

Custom & OEM Industrial Cameras

Application-specific imaging solutions from experts with over 30 years of machine vision experience and know-how.


In addition to manufacturing a wide variety of ready-made machine vision cameras, The Imaging Source also manufactures customized camera solutions for customer-specific requirements. Customers may specify minor or major changes to casing design, PCB layout, connection type, location and pinning, in addition to alterations to software drivers and end-user applications. The Imaging Source guarantees to manufacture customized camera solutions to the same high technical level as our ready-made cameras.
