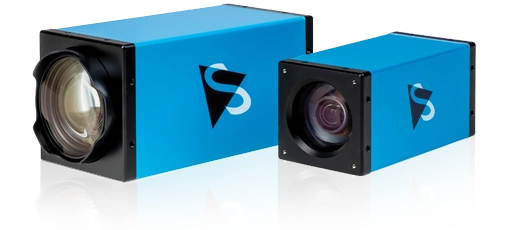

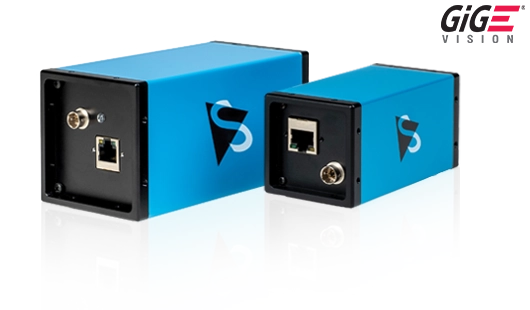

DMK Z12GX236

GigE monochrome zoom camera

DMK Z12GX236 - GigE monochrome zoom camera
DMK Z12GX236 - GigE monochrome zoom camera
Integrated lens
  • 1/2.8 inch Sony CMOS Exmor sensor (IMX236LLJ)
  • Motor zoom: 4.8 mm to 57.6 mm
  • 1,920×1,200 (2.3 MP), up to 41 fps
  • Rolling shutter
  • Trigger and I/O inputs
  • Manufactured by The Imaging Source
  • Windows and Linux software included


General behavior
Sensitivity 0.015 lx
Dynamic range 8/12 bit
Video formats @ frame rate (maximum) 1,920×1,200 (2.3 MP) Y800 @ 41 fps
1,920×1,200 (2.3 MP) Y16 @ 20 fps
Interface (optical)
IR cut filter
Sensor type CMOS Exmor
Sensor specification IMX236LLJ
Shutter rolling
Format 1/2.8 inch
Pixel size H: 2.8 µm, V: 2.8 µm
Focal length 4.8 mm (wide) to 57.6 mm (tele)
F-Stop 2.2 (wide) to 2.3 (tele)
MOD 3 cm (wide) to 70 cm (tele)
Focus automatic and manual
Iris automatic and manual
Lens integrated
Interface (electrical)
Interface GigE
Supply voltage 11 VDC to 13 VDC or POE: 48 VDC to 56 VDC
Current consumption approx 600 mA @ 12 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
Dimensions H: 50 mm, W: 50 mm, L: 103 mm
Mass 330 g
Adjustments
Shutter 1/100,000 s to 30 s
Gain 0 dB to 36 dB
Environmental
Temperature (operating) -5 °C to 45 °C
Temperature (storage) -20 °C to 60 °C
Humidity (operating) 20 % to 80 % (non-condensing)
Humidity (storage) 20 % to 95 % (non-condensing)
Subject to change
Whitepapers about Cameras
Industrial Cameras: GigE Camera Start Up Industrial Cameras: GigE Camera Start Up 1.0 March 23, 2018
Industrial Cameras: Spectral Sensitivity Industrial Cameras: Spectral Sensitivity 1.30 November 15, 2017
Dimensional Diagrams
Dimensional Diagrams for 21, 22, 23, 24, 42, 72, Autofocus and Zoom Series Dimensional Diagrams for 21, 22, 23, 24, 42, 72, Autofocus and Zoom Series 1.14 December 15, 2017
Subject to change
Device Drivers
newDevice Driver for GigE Cameras Device Driver for GigE Cameras 3.5.0.4411 July 24, 2019
Software Development Kits (SDKs)
IC Imaging Control .NET Component for C#, VB.NET, C++ Class Library for C++ projects IC Imaging Control .NET Component for C#, VB.NET, C++ Class Library for C++ projects 3.4.0.2744 October 23, 2018
IC 3D SDK - C, C++ library for stereo depth estimation IC 3D SDK - C, C++ library for stereo depth estimation 1.1 August 15, 2018
IC Imaging Control C Library IC Imaging Control C Library 3.4.0.51 November 23, 2017
IC Imaging Control ActiveX IC Imaging Control ActiveX 3.2.0.0 July 16, 2012
IC Imaging Control ActiveX Runtime Setup IC Imaging Control ActiveX Runtime Setup 3.2.0.0 July 16, 2012
Programming Samples
IC Barcode - 1D and 2D barcode reader for IC Imaging Control IC Barcode - 1D and 2D barcode reader for IC Imaging Control 1.0.0.580 November 2, 2018
IC Imaging Control - Sample Library IC Imaging Control - Sample Library 3.3 August 21, 2014
Extensions
newCognex VisionPro AIK Plugin for IC Imaging Control Cognex VisionPro AIK Plugin for IC Imaging Control 3.4.2.0 July 24, 2019
LabVIEW Extension for IC Imaging Control LabVIEW Extension for IC Imaging Control 3.4.0.40 November 29, 2018
IC NeuroCheck Driver for NeuroCheck 6.1 IC NeuroCheck Driver for NeuroCheck 6.1 1.1.0.69 May 28, 2018
IC Matlab Plugin for Matlab R2013b and higher versions IC Matlab Plugin for Matlab R2013b and higher versions 3.4.0.58 November 23, 2017
TWAIN Source for IC Imaging Control TWAIN Source for IC Imaging Control 3.0.0.124 June 19, 2017
IC NeuroCheck Driver for NeuroCheck 6.0 IC NeuroCheck Driver for NeuroCheck 6.0 1.0.0.51 September 29, 2014
IC Matlab Plugin for Matlab 10.0 R2010 IC Matlab Plugin for Matlab 10.0 R2010 1.1.0.0 July 29, 2013
End User Software
newIC Express IC Express 1.1.0.23 July 24, 2019
IC Measure - manual on-screen image measurement and image acquisition IC Measure - manual on-screen image measurement and image acquisition 2.0.0.161 January 22, 2019
IC 3D - User friendly stereo calibration, depth estimation and 3D visualization IC 3D - User friendly stereo calibration, depth estimation and 3D visualization 1.1 August 15, 2018
IC Capture - image acquisition IC Capture - image acquisition 2.4.642.2631 February 9, 2017
Scan2Voice Scan2Voice 2.4.2.960 June 21, 2016
Scan2Docx Scan2Docx 1.1.0.883 February 3, 2015
Scan2Docx OCR Scan2Docx OCR 1.1.0.883 February 3, 2015
Footswitch software for IC Capture Footswitch software for IC Capture 1.0.0.9 September 22, 2014
IC Line Profiler IC Line Profiler 1.1.0.9 August 1, 2014
IC Fullscreen Presenter IC Fullscreen Presenter 1.0.0.0 June 6, 2014
Software Tools
newHot Pixel Correction Hot Pixel Correction 4.0. July 25, 2019
Processor Idle State Manager Processor Idle State Manager 2.2.0.2 March 12, 2014
Subject to change
Cables
CA-GigE/5/BLS CA-GigE/5/BLS GigE cable, 5 m in length
CA-GigE/10/BLS CA-GigE/10/BLS GigE cable, 10 m in length
GigE23/PWR/Trig GigE23/PWR/Trig GigE cable, 0.2 m in length
Subject to change
