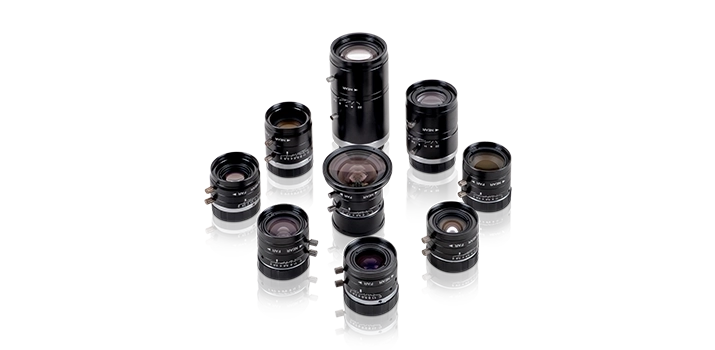

The Imaging Source 5 MP lenses

Product code Format Mount Focal length Iris range MOD Diameter Length Mass Filter thread PDF STEP
[inch] [mm] [m] [mm] [mm] [g] [mm]
TCSL 0418 5MP 1/2.5 CS 4 1.8 0.1 30 14.7 28 N/A
TCL 0616 5MP 1/1.8 C 6 1.6 - 16 0.1 36 45.8 110 M34×0.5
TCSL 0618 5MP 1/2.5 CS 6 1.8 0.1 30 18.3 33 N/A
TCL 0814 5MP 1/1.8 C 8 1.4 - 16 0.1 35 39.3 94 M27×0.5
TCSL 0818 5MP 1/2.5 CS 8 1.8 0.1 30 19.1 35 N/A
TCL 1216 5MP 2/3 C 12 1.6 - 16 0.1 35 39.2 100 M27×0.5
TCL 1616 5MP 2/3 C 16 1.6 - 16 0.2 35 42.4 108 M27×0.5
TCL 2518 5MP 2/3 C 25 1.8 - 16 0.3 35 38.4 86 M27×0.5
TCL 3520 5MP 2/3 C 35 2 - 16 0.4 35 39.2 84 M27×0.5
TCL 5026 5MP 2/3 C 50 2.6 - 32 0.5 35 65.7 113 M30.5×0.5
TCL 7528 5MP 1 C 75 2.8 - 32 0.6 36 72.2 146 M34×0.5
Subject to change.
