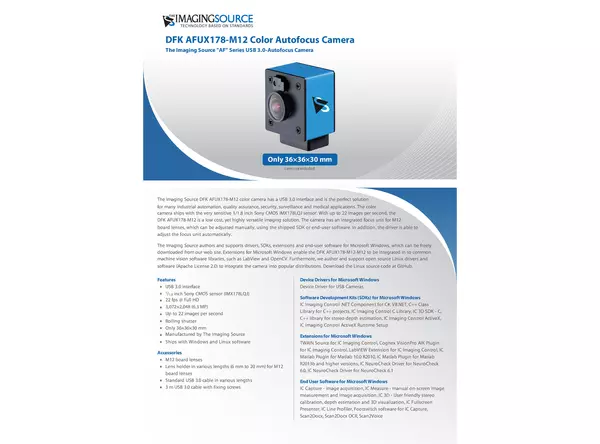

DFK AFUX178-M12
USB 3.0 color autofocus camera
⋯
⋯ ⋯
| General behavior | |
| Dynamic range | 8/12 bit |
| Video formats @ frame rate (maximum) | 3,072×2,048 (6.3 MP) Y800 @ 22 fps
3,072×2,048 (6.3 MP) Y16 @ 22 fps 3,072×2,048 (6.3 MP) RGB32 @ 11 fps |
| Interface (optical) | |
| IR cut filter | |
| Sensor type | CMOS |
| Sensor specification | Sony IMX178LQJ |
| Shutter | rolling |
| Format | 1/1.8 inch |
| Pixel size | H: 2.4 µm, V: 2.4 µm |
| Lens mount | M12x0.5 (motorized mount) |
| Interface (electrical) | |
| Interface | USB 3.0 |
| Supply voltage | 4.5 VDC to 5.5 VDC |
| Current consumption | approx 250 mA @ 5 VDC |
| Auto iris control | |
| Trigger | |
| I/Os | |
| Interface (mechanical) | |
| Dimensions | H: 36 mm, W: 36 mm, L: 30 mm |
| Mass | 70 g |
| Adjustments | |
| Shutter | 15 µs to 30 s |
| White balance | -2 dB to 6 dB |
| Environmental | |
| Temperature (operating) | -5 °C to 45 °C |
| Temperature (storage) | -20 °C to 60 °C |
| Humidity (operating) | 20 % to 80 % (non-condensing) |
| Humidity (storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
| Camera Whitepapers | |||
 |
Industrial Cameras: Spectral Sensitivity | 1.30 | November 15, 2017 |
| Dimensional Diagrams | |||
 |
Dimensional Diagrams for 21, 22, 23, 24, 42, 72, Autofocus and Zoom Series | 1.14 | December 15, 2017 |
| CMOS Sensor Datasheets | |||
 |
Datasheet for Sony IMX178LQJ CMOS Sensor | 1.0 | April 18, 2018 |
| Subject to change. | |||
| Cables | ||
 |
CA-USB30-AmB-BLS/3 | USB 3.0 cable, 3 m in length |
 |
CA-USB30-AmB-BLS/10 | USB 3.0 cable, 10 m in length |
| Subject to change. | ||
