DMK 33GX287
GigE monochrome industrial camera
⋯
⋯ ⋯
| General behavior | |
| Vision standard |  |
| Dynamic range | 12 bit |
| Resolution | 720×540 (0.4 MP) |
| Frame rate | 300 fps |
| Video output format | 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome |
| Interface (optical) | |
| IR cut filter | |
| Sensor type | CMOS Pregius |
| Sensor specification | Sony IMX287LLR |
| Shutter | global |
| Format | 1/2.9 inch |
| Pixel size | H: 6.9 µm, V: 6.9 µm |
| Lens mount | C/CS |
| Interface (electrical) | |
| Interface | GigE |
| Supply voltage | 11 VDC to 13 VDC or POE: 48 VDC to 56 VDC |
| Current consumption | approx 400 mA @ 12 VDC |
| Auto iris control | |
| Trigger | |
| I/Os | |
| Interface (mechanical) | |
| Dimensions | H: 29 mm, W: 29 mm, L: 57 mm |
| Mass | 65 g |
| Adjustments | |
| Shutter | 1 µs to 30 s |
| Environmental | |
| Temperature (operating) | -5 °C to 45 °C |
| Temperature (storage) | -20 °C to 60 °C |
| Humidity (operating) | 20 % to 80 % (non-condensing) |
| Humidity (storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
| Technical Reference Manuals | |||
 |
DMK 33GX287 Technical Reference Manual | 1.1 | April 23, 2019 |
| Whitepapers about Cameras | |||
 |
Industrial Cameras: GigE Camera Start Up | 1.0 | March 23, 2018 |
| Datasheets for CMOS Sensors | |||
 |
Datasheet for Sony IMX287LLR CMOS Sensor | 1.0 | October 26, 2017 |
| STEP Files | |||
 |
STEP File CS-Mount (121-11-21) | 1.0 | January 9, 2018 |
 |
STEP File C-Mount (121-11-22) | 1.0 | January 9, 2018 |
| Subject to change. | |||
| Cables | ||
 |
CA-GigE-ix/5 | GigE cable, 5 m in length |
 |
CA-GigE/5/BLS | GigE cable, 5 m in length |
|
CA-GigE/10/BLS | GigE cable, 10 m in length |
 |

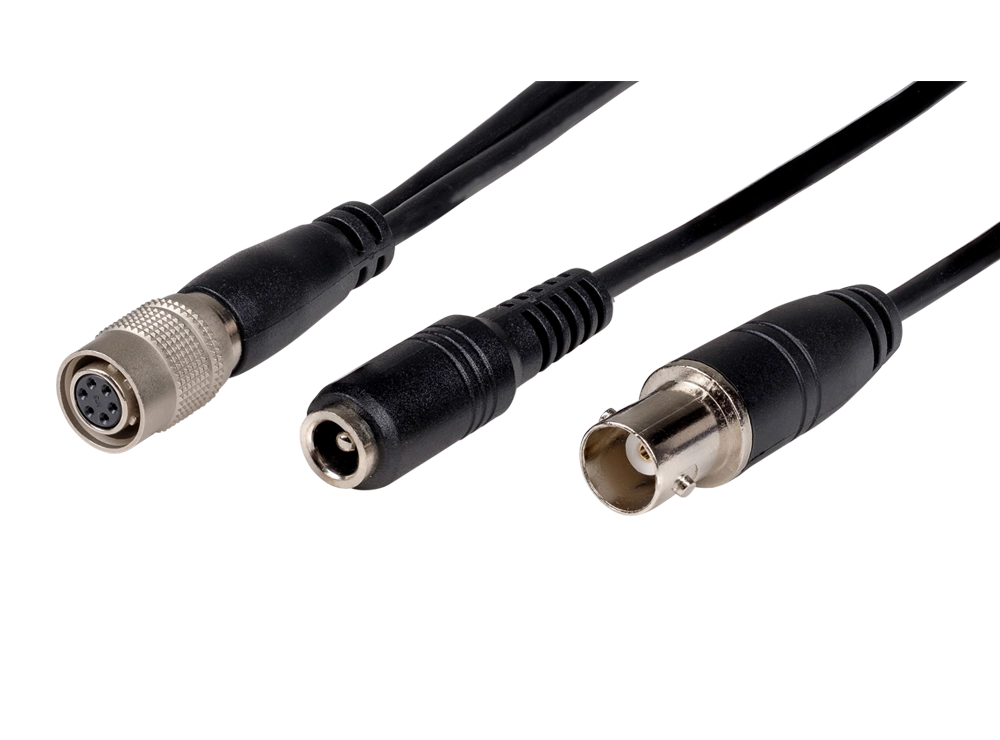

GigE23/PWR/Trig | GigE cable, 0.2 m in length |
| Subject to change. | ||
