6-Channel FPD-Link III
Carrier Board Compatible with the NVIDIA® Jetson Xavier NX™ Platform

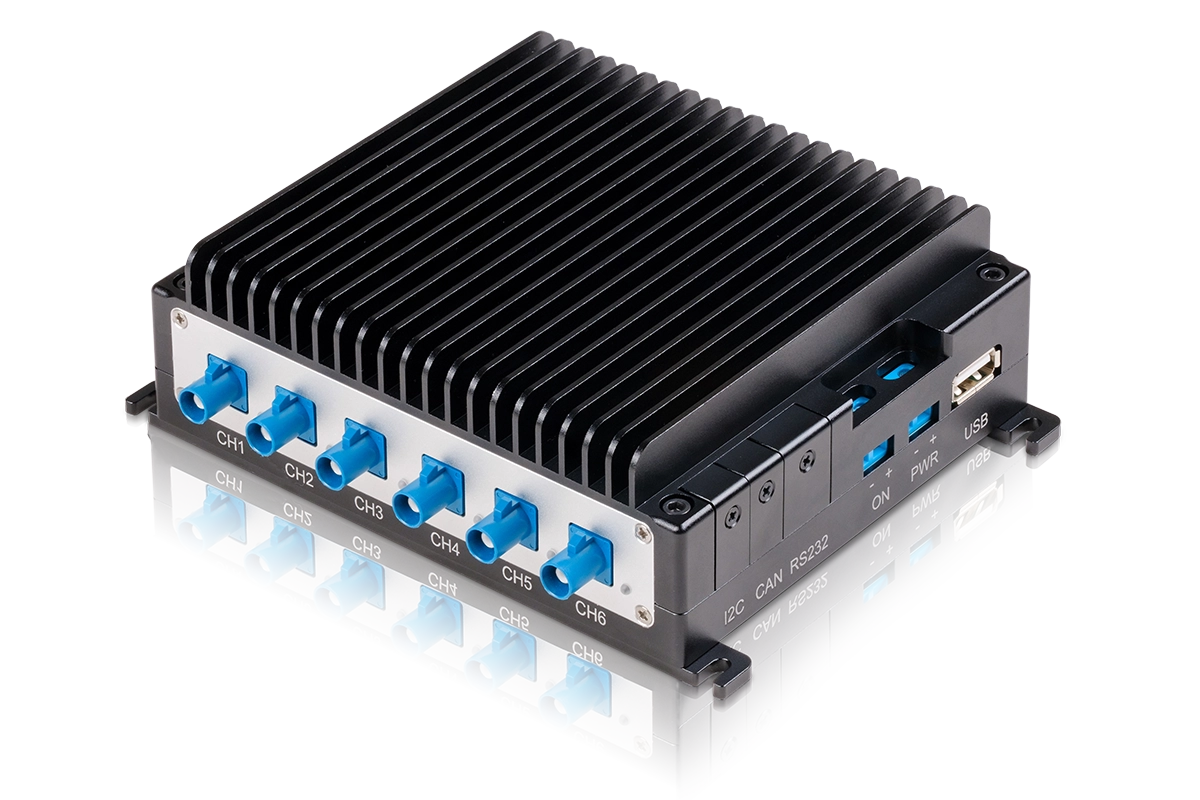

The 6-channel carrier board has six FAKRA camera inputs that can be used to connect up to six FPD-Link™ III cameras. The FPD-Link III cameras are MIPI CSI-2 cameras whose signal is transmitted via a high-speed serial interface. When compared to the USB 3.0 interface, FPD-Link III allows for cable lengths of more than 15 m with a comparable data rate.
The carrier board has all common PC interfaces such as USB and Gigabit Ethernet as well as a CAN bus interface. All The Imaging Source FPD-Link III cameras are supported (36C Series), covering a wide range of applications.
The carrier boards are delivered with NVIDIA JetPack software, which offers extensive deep learning functionality as well as a host of additional tools and libraries. For general image processing tasks and deep learning applications, the HALCON software library can also be installed and used.
- Run up to six cameras simultaneously.
- Reduce system footprint: SoM design means peripheral hardware and host systems are not necessary.
Click below to download the technical documentation for this 6-channel FPD-Link III carrier board.
