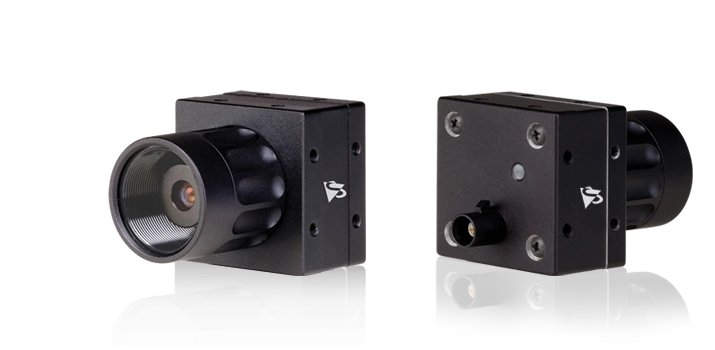

36C Series
FPD-Link III Cameras with IP67-Certified Ingress Protection
FPD-Link III IP67 cameras are suitable for both single and multi-camera applications in automotive, IoT and computer vision applications. For full IP6K6 and IP6K7 protection, the cameras must be used with the correctly mounted, original lens tube and The Imaging Source cables with IP67-certified FAKRA connectors.
| Product Code | MP | Resolution | FPS | Format | Sensor | Mono/Color | Shutter | Pixel Size | Trigger | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DMK 36CX297-I67 | 0.4 MP | 720×540 | 120 | 1/2.9 " | IMX297 |  |
Global | 6.9 µm | | |
|
DMK 36CX296-I67 | 1.6 MP | 1,440×1,080 | 60 | 1/2.9 " | IMX296 | |
Global | 3.45 µm | | |
|
DMK 36CX290-I67 | 2.1 MP | 1,920×1,080 | 60 | 1/2.8 " | IMX290 | |
Rolling | 2.9 µm | | |
|
DMK 36CR0234-I67 | 2.3 MP | 1,920×1,200 | 100 | 1/2.6 " | AR0234CS | |
Global | 3 µm | | |
|
DMK 36CX335-I67 | 5 MP | 2,592×1,944 | 30 | 1/2.8 " | IMX335 | |
Rolling | 2 µm | | |
|
DMK 36CX415-I67 | 8.3 MP | 3,840×2,160 | 30 | 1/2.8 " | IMX415 | |
Rolling | 1.45 µm | | |
|
DFK 36CX297-I67 | 0.4 MP | 720×540 | 120 | 1/2.9 " | IMX297 |  |
Global | 6.9 µm | | |
|
DFK 36CX296-I67 | 1.6 MP | 1,440×1,080 | 60 | 1/2.9 " | IMX296 | |
Global | 3.45 µm | | |
|
DFK 36CX290-I67 | 2.1 MP | 1,920×1,080 | 60 | 1/2.8 " | IMX290 | |
Rolling | 2.9 µm | | |
|
DFK 36CX462-I67 | 2.1 MP | 1,920×1,080 | 60 | 1/2.8 " | IMX462 | |
Rolling | 2.9 µm | | |
|
DFK 36CR0234-I67 | 2.3 MP | 1,920×1,200 | 100 | 1/2.6 " | AR0234CS | |
Global | 3 µm | | |
|
DFK 36CX390-I67 | 2.3 MP | 1,920×1,200 | 50 | 1/2.6 " | IMX390 | |
Rolling | 3 µm | | |
|
DFK 36CX335-I67 | 5 MP | 2,592×1,944 | 30 | 1/2.8 " | IMX335 | |
Rolling | 2 µm | | |
|
DFK 36CX415-I67 | 8.3 MP | 3,840×2,160 | 30 | 1/2.8 " | IMX415 | |
Rolling | 1.45 µm | | |
|
Subject to change. |
|||||||||||
Features
- CMOS sensors: CMOS (Global), CMOS STARVIS (Rolling), CMOS Pregius (Global), CMOS (Rolling)
- Resolutions: 0.4 MP - 8.3 MP
- Frame rates: 30 FPS - 120 FPS
- Interface: FPD-Link III Interface
- Trigger and I/O: Multiple variants available. Please see table above for details.
- OEM Cameras: OEM applications and co-branding for customer projects
- Software: The Imaging Source authors and supports device drivers, software development kits (SDKs), end user software, programming samples, extensions, and tools by tiscamera (NVIDIA) and libcamera (NXP) on Linux ARM.
- Warranty: 3-year warranty with continuous support
