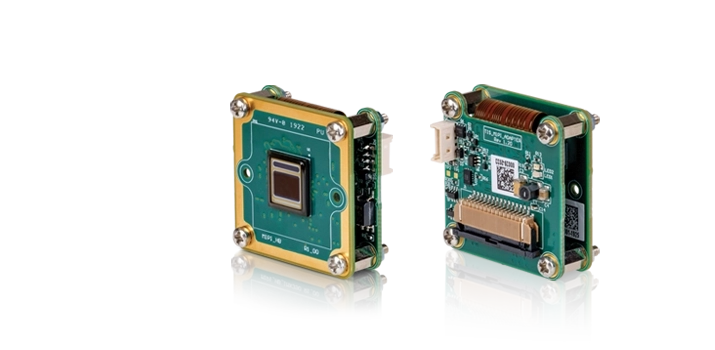

36A Series
15-Pin Interface MIPI® CSI-2 Modules for Direct Camera-to-Processor Connection
The Imaging Source's 36A series MIPI CSI-2 cameras enable direct sensor-to-processor connection, ensuring low latency. With a broad selection of Sony and onsemi sensors and expanded trigger and I/O functionality, these cameras deliver precision and versatility for a wide range of embedded applications.
| Product Code | MP | Resolution | FPS | Format | Sensor | Mono/Color | Shutter | Pixel Size | Trigger | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DMM 36AX297-ML | 0.4 MP | 720×540 | 120 | 1/2.9 " | IMX297 |  |
Global | 6.9 µm | | |
|
DMM 36AX296-ML | 1.6 MP | 1,440×1,080 | 60 | 1/2.9 " | IMX296 | |
Global | 3.45 µm | | |
|
DMM 36AX290-ML | 2.1 MP | 1,920×1,080 | 60 | 1/2.8 " | IMX290 | |
Rolling | 2.9 µm | | |
|
DMM 36AR0234-ML | 2.3 MP | 1,920×1,200 | 60 | 1/2.6 " | AR0234CS | |
Global | 3 µm | | |
|
DMM 36AX335-ML | 5 MP | 2,592×1,944 | 30 | 1/2.8 " | IMX335 | |
Rolling | 2 µm | | |
|
DMM 36AX415-ML | 8.3 MP | 3,840×2,160 | 50 | 1/2.8 " | IMX415 | |
Rolling | 1.45 µm | | |
|
DFM 36AX297-ML | 0.4 MP | 720×540 | 120 | 1/2.9 " | IMX297 |  |
Global | 6.9 µm | | |
|
DFM 36AX296-ML | 1.6 MP | 1,440×1,080 | 60 | 1/2.9 " | IMX296 | |
Global | 3.45 µm | | |
|
DFM 36AX290-ML | 2.1 MP | 1,920×1,080 | 60 | 1/2.8 " | IMX290 | |
Rolling | 2.9 µm | | |
|
DFM 36AX462-ML | 2.1 MP | 1,920×1,080 | 60 | 1/2.8 " | IMX462 | |
Rolling | 2.9 µm | | |
|
DFM 36AR0234-ML | 2.3 MP | 1,920×1,200 | 60 | 1/2.6 " | AR0234CS | |
Global | 3 µm | | |
|
DFM 36AX390-ML | 2.3 MP | 1,920×1,200 | 25 | 1/2.6 " | IMX390 | |
Rolling | 3 µm | | |
|
DFM 36AX335-ML | 5 MP | 2,592×1,944 | 30 | 1/2.8 " | IMX335 | |
Rolling | 2 µm | | |
|
DFM 36AX415-ML | 8.3 MP | 3,840×2,160 | 50 | 1/2.8 " | IMX415 | |
Rolling | 1.45 µm | | |
|
Subject to change. |
|||||||||||
Features
- CMOS sensors: CMOS (Global), CMOS STARVIS (Rolling), CMOS Pregius (Global), CMOS (Rolling)
- Resolutions: 0.4 MP - 8.3 MP
- Frame rates: 25 FPS - 120 FPS
- Interface: 15-Pin Raspberry Pi-Compatible Connector
- Trigger and I/O: Multiple variants available. Please see table above for details.
- OEM Cameras: OEM applications and co-branding for customer projects
- Software: The Imaging Source authors and supports device drivers, software development kits (SDKs), end user software, programming samples, extensions, and tools by tiscamera (NVIDIA) and libcamera (NXP) on Linux ARM.
- Warranty: 3-year warranty with continuous support
