Connecting laptops with a 6-pin FireWire interface

If the laptop does NOT supply the FireWire socket with power, you will need the following:

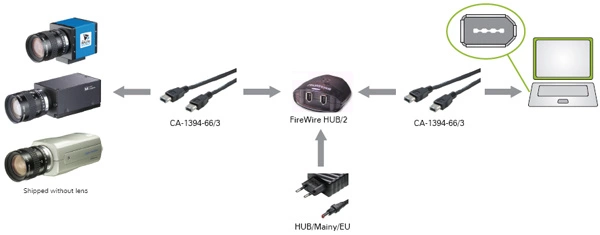

Connect them as the image illustrates below.

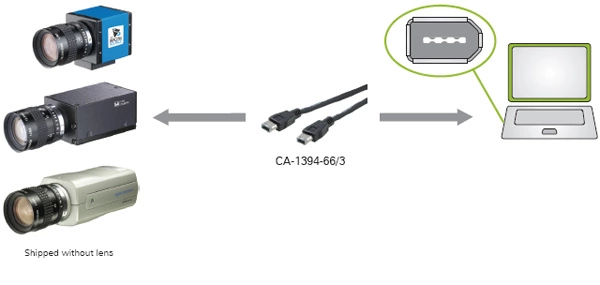

If the laptop does supply the FireWire socket with power (usually not in battery mode), you just need one 6-pin to 6-pin FireWire cable to directly connect the laptop and the camera:
