- 36C Series Color FPD-Link III Camera
- FPD-Link III Interface
- 1/2.6 inch onsemi CMOS AR0234CS Sensor
- 1,920×1,200 (2.3 MP), up to 100 fps
- Pixel Size: H: 3 µm, V: 3 µm
- IP6K6 and IP6K7 Compliant (ISO 20653)
- Global Shutter
- Trigger Input
- Only 36×36×60.3 mm
- Specification
- Documentation
- Downloads
General Behavior | |
Dynamic Range | 10 bit |
Resolution | 1,920×1,200 (2.3 MP) |
Frame Rate | 100 fps |
Video Output Format | 10-Bit Bayer (GR) |
Ingress Protection | |
Protection Rating | IP6K6 and IP6K7 |
ISO Standard | ISO 20653 |
Solid Particle Protection | 6K (maximum protection) |
Liquid Ingress Protection | 6 (powerful water jets) |
Additional Liquid Ingress Protection | 7 (immersion up to 1 m) |
Interface (Optical) | |
Sensor Type | CMOS |
Sensor Specification | onsemi AR0234CS |
Shutter | Global |
Format | 1/2.6 inch |
Pixel Size | H: 3 µm, V: 3 µm |
Lens Mount | M12x0.5 |
Interface (Electrical) | |
Interface | FPD-Link III |
Supply Voltage | 27 VDC to 10 VDC |
Current Consumption | Approx. 95 mA @ 18 VDC |
Auto-Iris Control | |
Trigger | |
I/O | |
Interface (Mechanical) | |
Dimensions | H: 36 mm, W: 36 mm, L: 60.3 mm |
Mass | 80 g |
Adjustments | |
Shutter | 15 µs to 0.25 s |
Gain | 0 dB to 19.2 dB |
Environmental | |
Temperature (Operating) | -5 °C to 45 °C |
Temperature (Storage) | -20 °C to 60 °C |
Humidity (Operating) | 20 % to 80 % (non-condensing) |
Humidity (Storage) | 20 % to 95 % (non-condensing) |
Subject to change. |
Industrial Cameras: Spectral Sensitivity | | 1.30 | Nov 2017 |
Mark&Technik: Development Kits für Embedded Vision | | 1.0 | Sep 2020 | |
MDSER-FPD-1CH 3.10 | | 1.0 | Feb 2021 | |
MIPI Deserializer Design Recommendations | | 1.0 | Feb 2021 | |
MIPI Sensor Board Connector | | 1.0 | Feb 2021 | |
MSER-FPD 1.20 | | 1.0 | Feb 2021 | |
MSER-FPD 1.30 | | 1.0 | Feb 2021 |
Datasheet for onsemi AR0234CS CMOS Sensor | | 1.0 | Feb 2023 |
STEP File (DxK 36C-I67) | | 1.0 | Apr 2021 |
The Imaging Source Catalog | | 2024.05 | May 2024 |

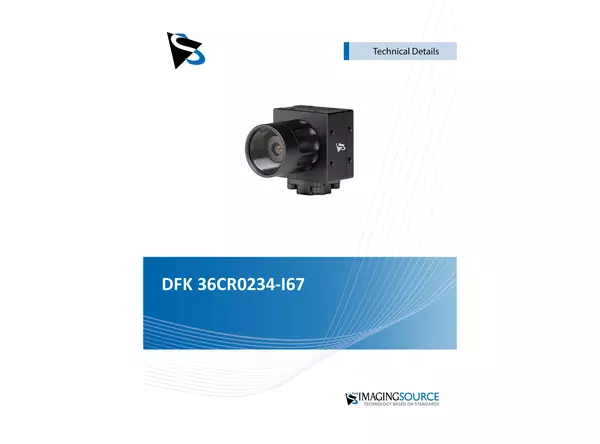

DFK 36CR0234-I67 Technical Reference Manual | New | 1.2 | Aug 2024 |
