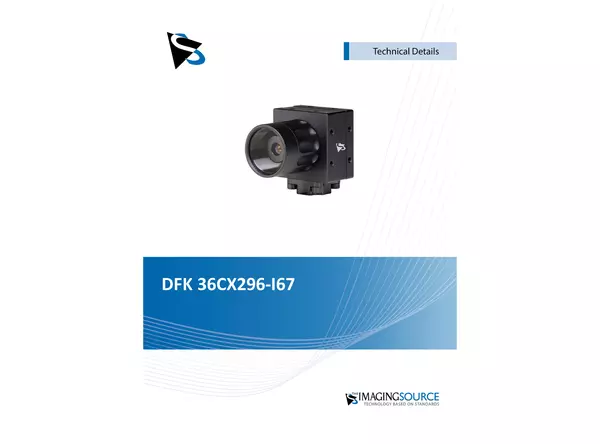

DFK 36CX296-I67

36C Series

Get Quotation

  • 36C Series Color FPD-Link III Camera
  • FPD-Link III Interface
  • 1/2.9 inch Sony CMOS Pregius IMX296 Sensor
  • 1,440×1,080 (1.6 MP), up to 60 fps
  • Pixel Size: H: 3.45 µm, V: 3.45 µm
  • IP6K6 and IP6K7 Compliant (ISO 20653)
  • Global Shutter
  • Trigger Input
  • Only 36×36×60.3 mm
  • Specification
  • Documentation
  • Downloads
General Behavior
Dynamic Range 10 bit
Resolution 1,440×1,080 (1.6 MP)
Frame Rate 60 fps
Video Output Format 10-Bit Bayer (RG)
Ingress Protection
Protection Rating IP6K6 and IP6K7
ISO Standard ISO 20653
Solid Particle Protection 6K (maximum protection)
Liquid Ingress Protection 6 (powerful water jets)
Additional Liquid Ingress Protection 7 (immersion up to 1 m)
Interface (Optical)
Sensor Type CMOS Pregius
Sensor Specification Sony IMX296
Shutter Global
Format 1/2.9 inch
Pixel Size H: 3.45 µm, V: 3.45 µm
Lens Mount M12x0.5
Interface (Electrical)
Interface FPD-Link III
Supply Voltage 27 VDC to 10 VDC
Current Consumption Approx. 115 mA @ 18 VDC
Auto-Iris Control
Trigger
I/O
Interface (Mechanical)
Dimensions H: 36 mm, W: 36 mm, L: 60.3 mm
Mass 80 g
Adjustments
Shutter 1 µs to 1 s
Gain 0 dB to 48 dB
Environmental
Temperature (Operating) -5 °C to 45 °C
Temperature (Storage) -20 °C to 60 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
