New 37 Series Industrial Cameras with onsemi AR0234

Published on June 8, 2023 by TIS Marketing.

Key Features

The Imaging Source has expanded its product portfolio to include new cameras equipped with onsemi AR0234 sensors. The cost-optimized AR0234 sensors, can be found in The Imaging Source's 37 Series industrial and board-level cameras, providing a flexible customization concept for systems engineers and OEMs.

  • Resolution: 2 MP
  • Frame Rate: 100 fps
  • Sensor Type: Global shutter
  • Interface: USB 3.1 (Gen1 - Typ C, 5MBit/s)
  • Excellent performance even at low-light conditions

37 Series industrial cameras: Single-board cameras ideal for cost-sensitive and OEM applications.

Form Factors

These compact, single-board cameras offer a reduced hardware footprint and are available in a variety of form factors:

  • DFK 37AUR0234 - color industrial camera
  • DFK 37BUR0234 - color industrial camera with Hirose trigger and IO
  • DBK 37AUR0234 - color industrial camera without IR cut filter
  • DBK 37BUR0234 - color industrial camera with Hirose trigger and IO (no IR cut filter)
  • DFM 37UR0234-ML - color board-level camera (S-mount lens)
  • DMK 37AUR0234 - monochrome industrial camera
  • DMK 37BUR0234 - monochrome industrial camera with Hirose trigger and IO
  • DMM 37UR0234-ML - monochrome board-level camera (S-mount lens)

Region of interest (ROI): Sample photo has been resized (1920x1080 to 640x400). Automatic white balance. Color enhancement "on." Gamma set to 0.61.

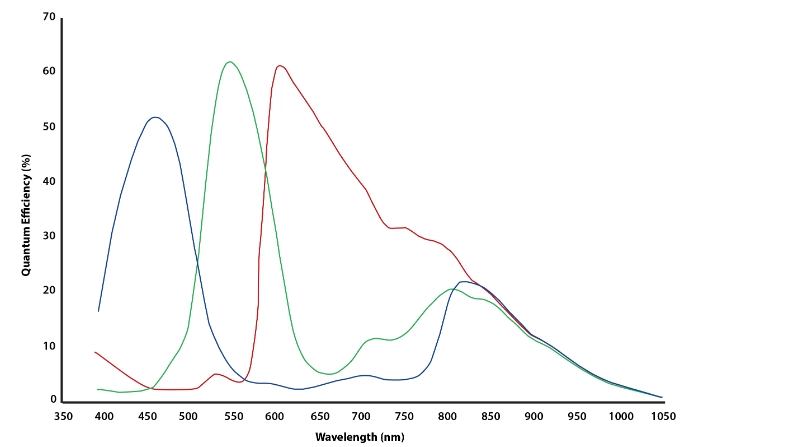

Spectral diagram for onsemi AR0234
