- 36C Series Color FPD-Link III Camera
- FPD-Link III Interface
- 1/2.8 inch Sony CMOS STARVIS IMX415 Sensor
- 3,840×2,160 (8.3 MP), up to 30 fps
- Pixel Size: H: 1.45 µm, V: 1.45 µm
- IP6K6 and IP6K7 Compliant (ISO 20653)
- Rolling Shutter
- Only 36×36×60.3 mm
- Specification
- Documentation
- Downloads
- Cables
| General Behavior | |
| Dynamic Range | 12 bit |
| Resolution | 3,840×2,160 (8.3 MP) |
| Frame Rate | 30 fps |
| Video Output Format | 12-Bit Bayer (GB), 10-Bit Bayer (GB) |
| Ingress Protection | |
| Protection Rating | IP6K6 and IP6K7 |
| ISO Standard | ISO 20653 |
| Solid Particle Protection | 6K (maximum protection) |
| Liquid Ingress Protection | 6 (powerful water jets) |
| Additional Liquid Ingress Protection | 7 (immersion up to 1 m) |
| Interface (Optical) | |
| Sensor Type | CMOS STARVIS |
| Sensor Specification | Sony IMX415 |
| Shutter | Rolling |
| Format | 1/2.8 inch |
| Pixel Size | H: 1.45 µm, V: 1.45 µm |
| Lens Mount | M12x0.5, optional |
| Interface (Electrical) | |
| Interface | FPD-Link III |
| Supply Voltage | 27 VDC to 10 VDC |
| Current Consumption | Approx. 110 mA @ 18 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 36 mm, W: 36 mm, L: 60.3 mm |
| Mass | 80 g |
| Adjustments | |
| Shutter | 15 µs to 0.1 s |
| Gain | 0 dB to 72 dB |
| Environmental | |
| Temperature (Operating) | -5 °C to 45 °C |
| Temperature (Storage) | -20 °C to 60 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
IP67 Industrial Cameras Operating Instructions | | 1.1 | Jul 2025 |
 |

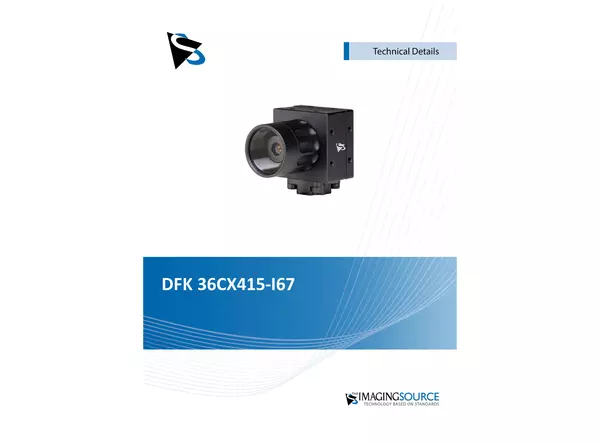

DFK 36CX415-I67 Technical Reference Manual | | 1.2 | Aug 2024 |
 |
