Acuva

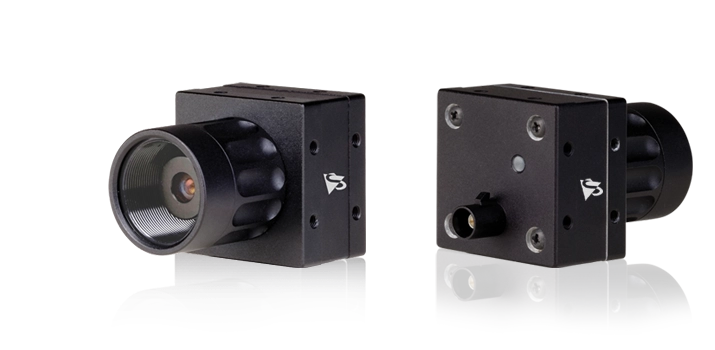

Rugged, High-Speed IP67 GMSL2 Cameras
Vision at the Speed of Innovation - The Imaging Source's latest GMSL2 cameras feature high-speed data transfer of up to 6 Gbps, robust coaxial cables of up to 15 m length, IP67-rated housings, and FAKRA connectors - designed for reliable imaging in harsh environments in automotive, robotics, agriculture, and other embedded and industrial vision systems.
Acuva - Reliability You Can See.
| Product Code | MP | Resolution | FPS | Format | Sensor | Mono/Color | Shutter | Pixel Size | Trigger | I/O | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AcM 36DX900-I67 | 3.1 MP | 2,048×1,536 | 80 | 1/3.1 " | IMX900 |  |
Global | 2.25 µm | | | |
|
AcM 36DX568-I67 | 5 MP | 2,448×2,048 | 50 | 1/1.8 " | IMX568 | |
Global | 2.74 µm | | | |
|
AcM 36DR2020-I67 | 19.7 MP | 5,120×3,840 | 14 | 1/1.8 " | AR2020 | |
Rolling | 1.4 µm | | | |
|
AcC 36DX900-I67 | 3.1 MP | 2,048×1,536 | 80 | 1/3.1 " | IMX900 |  |
Global | 2.25 µm | | | |
|
AcC 36DX568-I67 | 5 MP | 2,448×2,048 | 50 | 1/1.8 " | IMX568 | |
Global | 2.74 µm | | | |
|
AcC 36DR2020-I67 | 19.7 MP | 5,120×3,840 | 14 | 1/1.8 " | AR2020 | |
Rolling | 1.4 µm | | |
Features
- CMOS sensors: CMOS (Rolling), CMOS Pregius S (Global)
- Resolutions: 3.1 MP - 19.7 MP
- Frame rates: 14 FPS - 80 FPS
- Interface: GMSL2 with data transfer speeds of up to 6 Gbps
- Housing: IP67-rated housings with integrated M12 S-mount lenses
- Cables: IP67-rated coaxial cables (PoC) featuring FAKRA connectors and available in lengths of 1-15 m
- SoM: Compatible with The Imaging Source's NVIDIA Jetson Orin Reference Designs via a deserializer board
- IPC: Compatible with third-party IPCs from trusted partners Neousys Technology (NRU-230V-AWP, NRU-160-AWP, NRU-51V, FLYC-300), AAEON (BOXER-8645AI), PCB ARTS (Helium), ConnectTech (Rudi-NX) and Qualcomm (Dragonwing RB3 Gen 2)
- Trigger: Yes
- IP67 Tube: Matching IP67 tubes for perfect compatibility
- S-Ultra M12 Lenses: S-Mount M12 lenses for ultimate image quality
- OEM Cameras: OEM applications and co-branding for customer projects
- Software: The Imaging Source authors and supports device drivers, software development kits (SDKs), end user software, programming samples, extensions, and tools by for Linux ARM 64-bit.
- Warranty: 3-year warranty with continuous support
Select a Compatible S-Ultra M12 Lens
(Max. focal length 25 mm)
Note: All Acuva GMSL2 IP67 cameras are supplied without M12 S-mount lenses or IP67 lens tubes. Based on the selected S-Ultra M12 lens, an IP67 lens tube of the appropriate length must be selected and ordered separately.
For assembly instructions refer to our Knowledge Base.
Compatibility Matrix
| Lens | Tube | AcX 36DX900-I67 | AcX 36DX568-I67 | AcX 36DR2020-I67 |
|---|---|---|---|---|
| TBN 3.4 (C) 5MP | 18mm | | * | * |
| TBN 4.5 (C) 12MP | 25mm | | | |
| TBN 5.2 (C) 16MP | 25mm | | | * |
| TBN 6 (C) 5MP | 25mm | | | |
| TBN 8 (C) 5MP | 25mm | | | |
| TBN 12 (C) 12MP | 25mm | | | |
| TBN 12 (C) 5MP | 25mm | | | |
| TBN 16 (C) 12MP | 25mm | | | |
| TBN 1628 (C) 5MP | 25mm | | | |
| TBN 25 (C) 10MP | 25mm | | | |
| TBN 25 (C) 5MP | 25mm | | | |
|
* Slight vignetting |
||||
One Partner. One Solution. Complete Confidence.
Unlock the full potential of The Imaging Source's GMSL2 camera technology with our end-to-end solution, designed to work seamlessly from sensor to system.

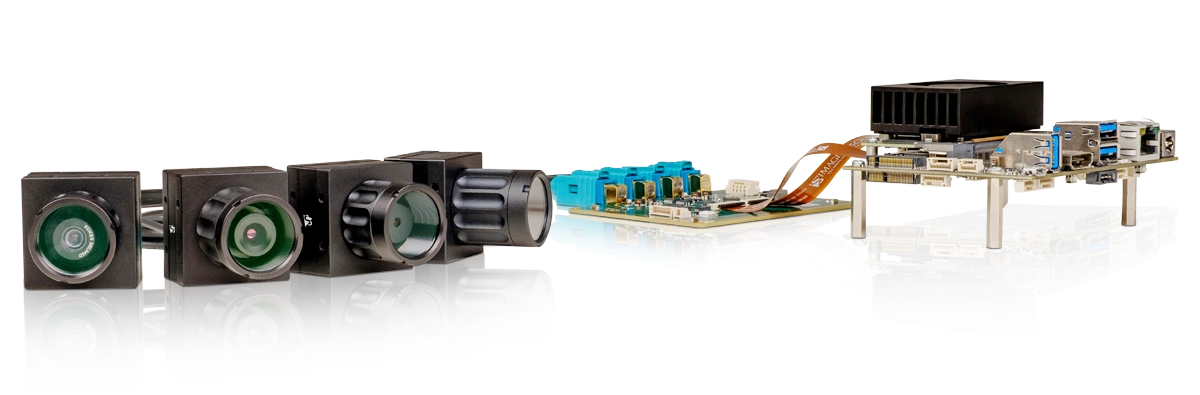

The Imaging Source provides everything necessary for building embedded vision systems: high-performance IP67 GMSL2 cameras, robust deserializer boards, reliable coaxial IP67 cabling, and powerful NVIDIA Jetson Orin Reference Design integrations, all engineered to function together flawlessly.
By choosing our complete ecosystem, you eliminate integration risks, reduce development time, and free up your team to focus on what truly matters: your core innovation.
No guesswork. No compatibility headaches. Just a working solution - out of the box.
Powering Innovation Through Partnership - Simplify Your Vision
To help you accelerate development and reduce complexity, The Imaging Source collaborates with trusted partners like Neousys Technology and AAEON Technology.
Our GMSL2 cameras and accessories are fully compatible with their industrial PCs (IPCs), ensuring seamless integration and reliable performance right out of the box.
These partnerships are designed to save you time, minimize integration effort, and give you a competitive edge. Because when our technologies work together, you succeed faster.
GMSL2 Cameras and Neousys IPCs
In this video, we demonstrate the compatibility of our GMSL2 cameras and accessories with Neousys industrial PCs (IPCs) - ensuring seamless integration and reliable performance right out of the box.
