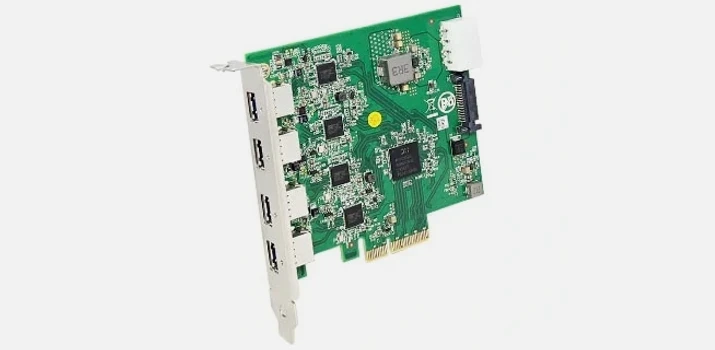

For High-Performance and Reliable Vision Applications
Easy integration of your vision system saves time and effort: via plug-and-play using a PC card for individual project requirements. Thanks to various interfaces and bandwidth options, the cards are ideally suited for multi-camera systems and demanding industrial applications.

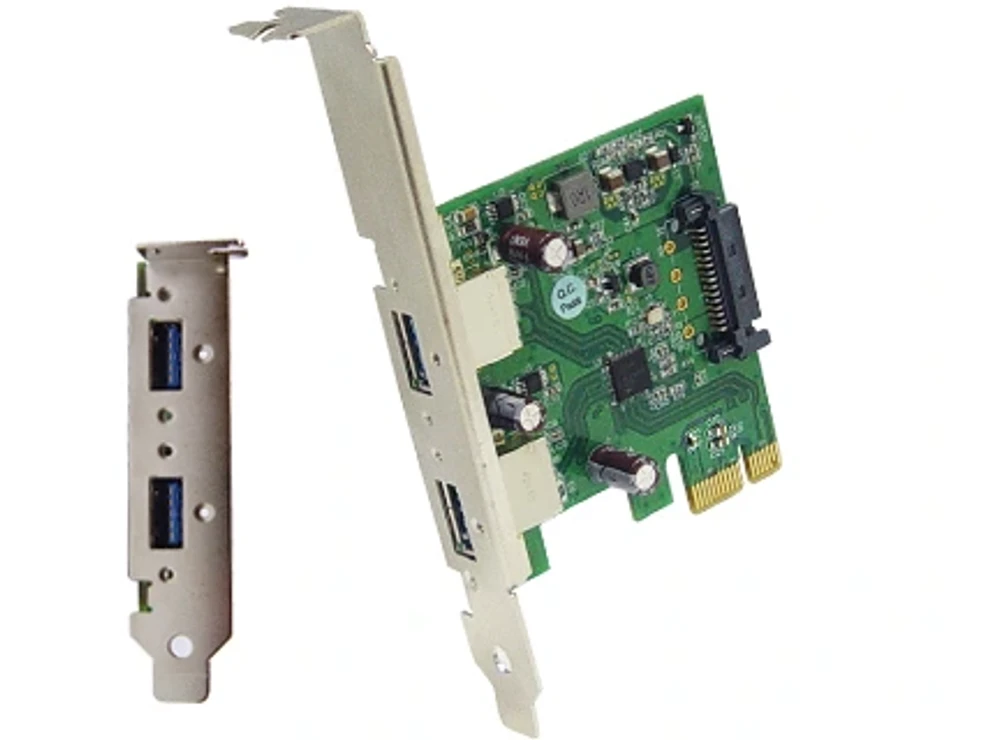

IC-USB3-5G-1RE-2A
- Standard: USB 3.2 Gen1
- Speed: 5 Gbps
- Bandwidth (total): 5 Gbps
- Number of Host Controller: 1
- Host Controller: Renesas uPD720202
- Number of Ports: 2 (with screw-lock)
- Host Bus: PCIe x1 Gen 2
- Power Supply: via SATA 15-pin
- Operating System: Windows 10/11, Linux Ubuntu 22.04 LTS or newer
- Cable Length: up to 5 meters USB 3.1 and USB 3.0 (8 m or longer on request)
- Compatible products: 38U Series Industrial, 37U Series Industrial, 37U Series Board, 33U Series Industrial, Aptiris Zoom & Autofocus

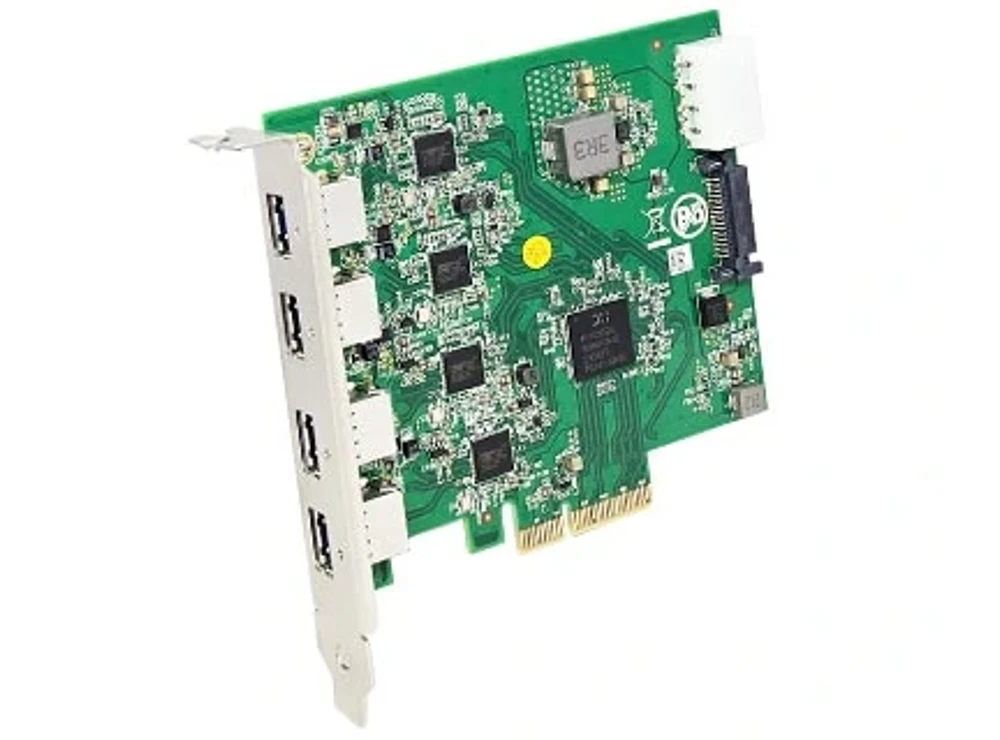

IC-USB3-5G-4FL-4A
- Standard: USB 3.2 Gen1
- Speed: 5 Gbps
- Bandwidth (total): 20 Gbps
- Number of Host Controller: 4
- Host Controller: Fresco FL1100
- Number of Ports: 4 (with screw-lock)
- Host Bus: PCIe x4 Gen 2
- Power Supply: via SATA 15-pin, IDE 4-pin
- Operating System: Windows 10/11, Linux Ubuntu 22.04 LTS or newer
- Cable Length: up to 5 meters USB 3.1 and USB 3.0 (8 m or longer on request)
- Compatible products: 38U Series Industrial, 37U Series Industrial, 37U Series Board, 33U Series Industrial, Aptiris Zoom & Autofocus
