DMK 33GJ003e

33G Series

Get Quotation

  • 33G Series Monochrome Industrial Camera
  • GigE Interface (RJ45)
  • 1/2.3 inch onsemi CMOS MT9J003 Sensor
  • 3,856×2,764 (10.7 MP), up to 11 fps
  • Pixel Size: H: 1.67 µm, V: 1.67 µm
  • Rolling Shutter
  • Trigger and I/O Inputs
  • Only 29×44×57 mm
  • Specification

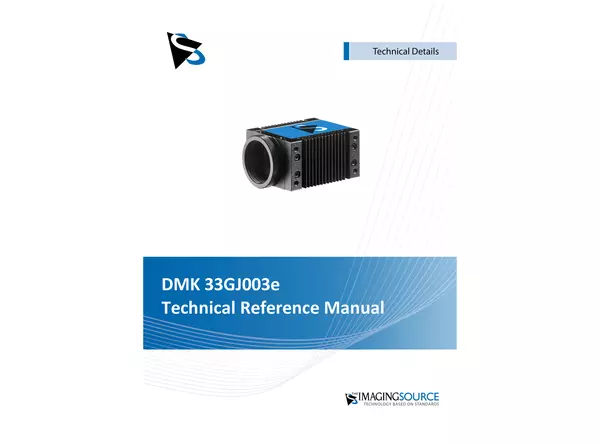

  • Documentation
  • Downloads
  • Cables
General Behavior
Vision Standard GigE Vision
Dynamic Range 12 bit
Resolution 3,856×2,764 (10.7 MP)
Frame Rate 11 fps
Video Output Format 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
Interface (Optical)
Sensor Type CMOS
Sensor Specification onsemi MT9J003
Shutter Rolling
Format 1/2.3 inch
Pixel Size H: 1.67 µm, V: 1.67 µm
Lens Mount C (CS optional)
Interface (Electrical)
Interface Gigabit Ethernet (RJ45)
Supply Voltage 11 VDC to 13 VDC or POE: 48 VDC to 56 VDC
Current Consumption Approx. 400 mA @ 12 VDC
Auto-Iris Control
Trigger
I/O
Interface (Mechanical)
Dimensions H: 29 mm, W: 44 mm, L: 57 mm
Mass 120 g
Adjustments
Shutter 100 µs to 30 s
Gain 0 dB to 5.83 dB
Environmental
Housing Temperature (Operating) -5 °C to 50 °C
Temperature (Storage) -20 °C to 80 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
