- Acuva Monochrome GSML2 camera
- GMSL2 with data transfer speeds of up to 6 Gbps
- 1/3.1 inch Sony CMOS Pregius S IMX900 Sensor
- 2,048×1,536 (3.1 MP), up to 80 fps
- Pixel Size: H: 2.25 µm, V: 2.25 µm
- IP6K6 and IP6K7 Compliant (ISO 20653)
- Global Shutter
- Trigger Input
- Only 36×36×60.3 mm
- Specification
- Documentation
- Downloads
- Cables
| General Behavior | |
| Dynamic Range | 12 bit |
| Resolution | 2,048×1,536 (3.1 MP) |
| Frame Rate | 80 fps |
| Video Output Format | 10-Bit Monochrome |
| Ingress Protection | |
| Protection Rating | IP6K6 and IP6K7 |
| ISO Standard | ISO 20653 |
| Solid Particle Protection | 6K (maximum protection) |
| Liquid Ingress Protection | 6 (powerful water jets) |
| Additional Liquid Ingress Protection | 7 (immersion up to 1 m) |
| Interface (Optical) | |
| Sensor Type | CMOS Pregius S |
| Sensor Specification | Sony IMX900 |
| Shutter | Global |
| Format | 1/3.1 inch |
| Pixel Size | H: 2.25 µm, V: 2.25 µm |
| Lens Mount | M12x0.5, optional |
| Interface (Electrical) | |
| Interface | GMSL2 |
| Supply Voltage | 10 VDC to 20 VDC |
| Current Consumption | Approx. 95 mA @ 12 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 36 mm, W: 36 mm, L: 60.3 mm |
| Mass | 80 g |
| Adjustments | |
| Shutter | 15 µs to 1 s |
| Gain | 0 dB to 48 dB |
| Environmental | |
| Temperature (Operating) | -5 °C to 45 °C |
| Temperature (Storage) | -20 °C to 60 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
AcM 36DX900-I67 Data Sheet | New | 1.0 | Nov 2025 |
 |

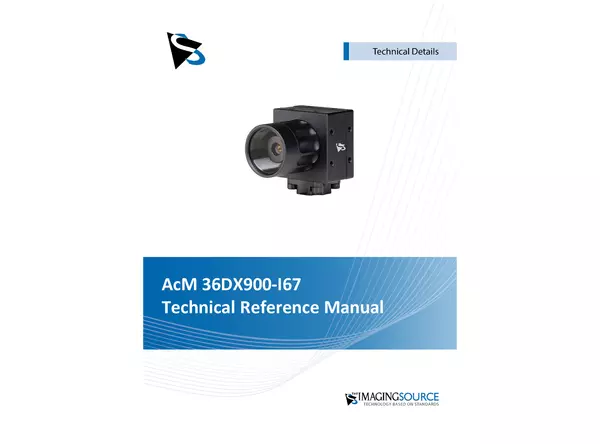

AcM 36DX900-I67 Technical Reference Manual | New | 1.0 | Oct 2025 |
 |
