- 36M Series Color MIPI CSI-2 Camera
- The Imaging Source MIPI CSI-2 Sensor Board Connector
- 1/2.8 inch Sony CMOS STARVIS IMX335 Sensor
- 2,592×1,944 (5 MP), up to 60 fps
- Pixel Size: H: 2 µm, V: 2 µm
- Rolling Shutter
- Only 30×30×5.45 mm
- Specification
- Documentation
- Downloads
| General Behavior | |
| Dynamic Range | 12 bit |
| Resolution | 2,592×1,944 (5 MP) |
| Frame Rate | 60 fps |
| Video Output Format | 12-Bit Bayer (RG), 10-Bit Bayer (RG) |
| Interface (Optical) | |
| Sensor Type | CMOS STARVIS |
| Sensor Specification | Sony IMX335 |
| Shutter | Rolling |
| Format | 1/2.8 inch |
| Pixel Size | H: 2 µm, V: 2 µm |
| Lens Mount | M12x0.5 |
| Interface (Electrical) | |
| Interface | The Imaging Source MIPI CSI-2 Sensor Board Connector |
| Supply Voltage | 4.75 VDC to 5.25 VDC |
| Current Consumption | Approx. 110 mA @ 5 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 30 mm, W: 30 mm, L: 5.45 mm |
| Mass | 4 g |
| Adjustments | |
| Shutter | 20 µs to 0.5 s |
| Gain | 0 dB to 72 dB |
| Environmental | |
| Temperature (Operating) | -5 °C to 45 °C |
| Temperature (Storage) | -20 °C to 60 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
The Imaging Source 2022 Catalog | | 2022.08 | Aug 2022 |
 |

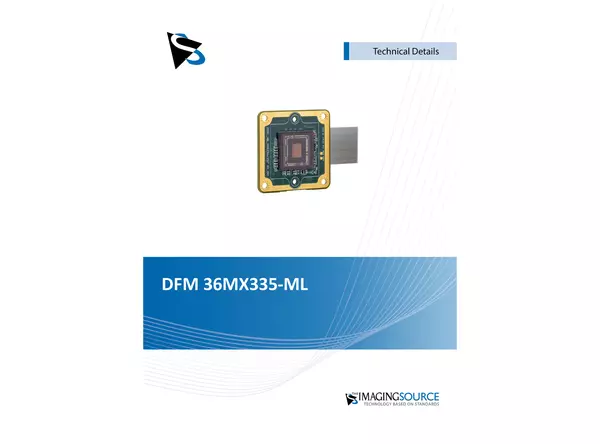

DFM 36MX335-ML Technical Reference Manual | | 1.1 | Dec 2021 |
 |
