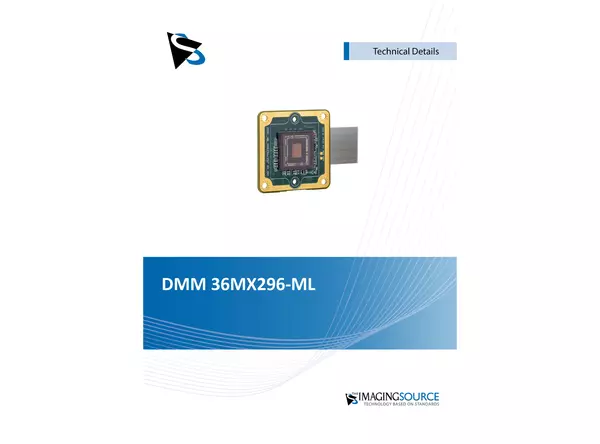

DMM 36MX296-ML

36M Series

Get Quotation

  • 36M Series Monochrome MIPI CSI-2 Camera
  • The Imaging Source MIPI CSI-2 Sensor Board Connector
  • 1/2.9 inch Sony CMOS Pregius IMX296 Sensor
  • 1,440×1,080 (1.6 MP), up to 60 fps
  • Pixel Size: H: 3.45 µm, V: 3.45 µm
  • Global Shutter
  • Trigger Input
  • Only 30×30×5.45 mm
  • Specification
  • Documentation
  • Downloads
General Behavior
Dynamic Range 10 bit
Resolution 1,440×1,080 (1.6 MP)
Frame Rate 60 fps
Video Output Format 10-Bit Monochrome
Interface (Optical)
Sensor Type CMOS Pregius
Sensor Specification Sony IMX296
Shutter Global
Format 1/2.9 inch
Pixel Size H: 3.45 µm, V: 3.45 µm
Lens Mount M12x0.5
Interface (Electrical)
Interface The Imaging Source MIPI CSI-2 Sensor Board Connector
Supply Voltage 4.75 VDC to 5.25 VDC
Current Consumption Approx. 185 mA @ 5 VDC
Auto-Iris Control
Trigger
I/O
Interface (Mechanical)
Dimensions H: 30 mm, W: 30 mm, L: 5.45 mm
Mass 4 g
Adjustments
Shutter 1 µs to 1 s
Gain 0 dB to 48 dB
Environmental
Temperature (Operating) -5 °C to 45 °C
Temperature (Storage) -20 °C to 60 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
