Pin Assignment of Open End Trigger Cables
6 Pin Connector
The article code is Gige23/Trig/OE/3
|
Pin |
Signal |
I/O |
Remarks |
Min |
Typical |
Max |
Unit |
Color |
|---|---|---|---|---|---|---|---|---|
|
1 |
Gige Power |
P³ |
11.0 |
12.0 |
13.0 |
V |
white |
|
|
2 |
Trigger In (+) |
I³ |
Optocoupler Signal |
3.3² |
24.0² |
V |
brown |
|
|
3 |
Trigger In (-) |
I³ |
Optocoupler Ground |
green |
||||
|
4 |
Strobe Out |
O³ |
Open Drain |
24.0¹ |
V |
yellow |
||
|
5 |
GND I/O |
G³ |
External Ground Open Drain |
grey |
||||
|
6 |
GND DC |
G³ |
External Ground Power |
pink |
In order to assemble a connection cable the Hirose plug HR10A-7P-6S(73) is needed.

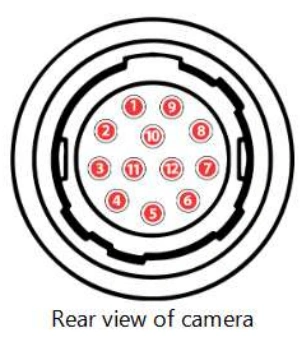

12 Pin Connector
The article code is H12/Trig/OE/3.
|
Pin |
Signal |
I/O |
Remarks |
Min |
Typical |
Max |
Unit |
Color |
|---|---|---|---|---|---|---|---|---|
|
7 |
GND I/O |
G³ |
Extrernal Ground Open Drain |
green |
||||
|
10 |
Strobe Out |
O³ |
Open Drain |
24.0¹ |
V |
white |
||
|
11 |
Trigger In (+) |
I³ |
Optocoupler Signal |
3.3² |
24.0² |
V |
grey |
|
|
12 |
Trigger In (-) |
I³ |
Optocoupler Ground |
red |
Attention: Use the above mentioned pins only!
In order to assemble a connection cable the Hirose plug HR10A-10P-12S(73) is needed.
¹ Max 0.2A for Open Drain
² Min 3.5 mA necessary power
³ G:Ground O: Output I: Input
