DMK 37AUR0234

37U Series

Get Quotation

  • 37U Series Monochrome Industrial Camera
  • USB 3.1 Interface
  • 1/2.6 inch onsemi CMOS AR0234CS Sensor
  • 1,920×1,200 (2.3 MP), up to 100 fps
  • Pixel Size: H: 3 µm, V: 3 µm
  • Global Shutter
  • Only 36×36×25 mm
  • Specification

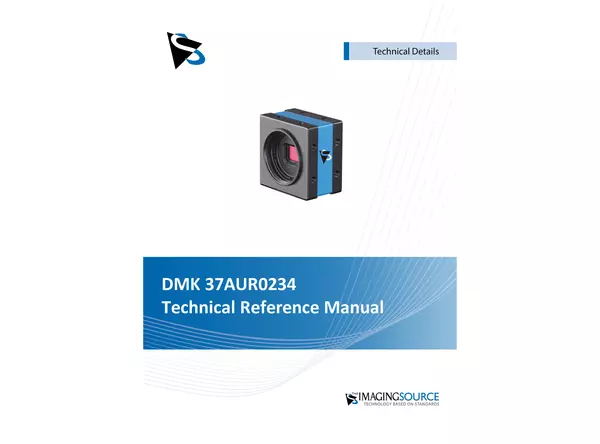

  • Documentation
  • Downloads
General Behavior
Vision Standard GigE Vision
Dynamic Range 10 bit
Resolution 1,920×1,200 (2.3 MP)
Frame Rate 100 fps
Video Output Format 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome
Interface (Optical)
Sensor Type CMOS
Sensor Specification onsemi AR0234CS
Shutter Global
Format 1/2.6 inch
Pixel Size H: 3 µm, V: 3 µm
Lens Mount C/CS
Interface (Electrical)
Interface USB 3.1
Supply Voltage 4.75 VDC to 5.25 VDC
Current Consumption Approx. tbd mA @ 5 VDC
Auto-Iris Control
Trigger
I/O
Interface (Mechanical)
Dimensions H: 36 mm, W: 36 mm, L: 25 mm
Mass 70 g
Adjustments
Shutter 50 µs to 0.25 s
Gain 0 dB to 6.92 dB
Environmental
Housing Temperature (Operating) -5 °C to 50 °C
Temperature (Storage) -20 °C to 80 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
