DFK 38GX540-a

38G Series

​ Get Quotation

  • 38G Series Color Industrial Camera
  • GigE Interface (RJ45), PoE
  • 1.2 inch Sony CMOS Pregius S IMX540 Sensor
  • 5,320×4,600 (24.5 MP), up to 4 fps
  • Pixel Size: H: 2.74 µm, V: 2.74 µm
  • Sensor Size: 14,6 mm x 12,6 mm
  • Sensor Diagonal: 19,3 mm
  • Global Shutter
  • Trigger and I/O Inputs
  • Only 29×44×75 mm
  • Specification
  • Documentation
  • Downloads
  • Cables
  • Optics
General Behavior
Vision Standard GigE Vision
Dynamic Range 12 bit
Resolution 5,320×4,600 (24.5 MP)
Frame Rate 4 fps
Video Output Format 8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG), YUV 4:2:2, YUV 4:1:1, RGB24
Ingress Protection
Protection Rating IP40 (with a suitable lens, a data cable with screw lock, and an I/O trigger cable installed)
Interface (Optical)
IR-Cut Filter ​ (available without IR-Cut Filter on request)
Sensor Type CMOS Pregius S
Sensor Specification ​ Sony IMX540
Shutter Global
Format 1.2 inch
Pixel Size H: 2.74 µm, V: 2.74 µm
Sensor Size H: 14,6 mm, V: 12,6 mm
Sensor Diagonal 19,3 mm
Lens Mount C (CS optional)
Interface (Electrical)
Interface Gigabit Ethernet (RJ45), PoE
Supply Voltage 9 VDC to 27 VDC or POE: 48 VDC to 56 VDC
Current Consumption Approx. 400 mA @ 12 VDC
Auto-Iris Control ​
Trigger ​
I/O ​
Interface (Mechanical)
Dimensions H: 29 mm, W: 44 mm, L: 75 mm
Mass 165 g
Adjustments
Shutter 2 µs to 30 s
Gain 0 dB to 48 dB
Environmental
Housing Temperature (Operating) -5 °C to 50 °C
Temperature (Storage) -20 °C to 80 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
DFK 38GX540-a Data Sheet

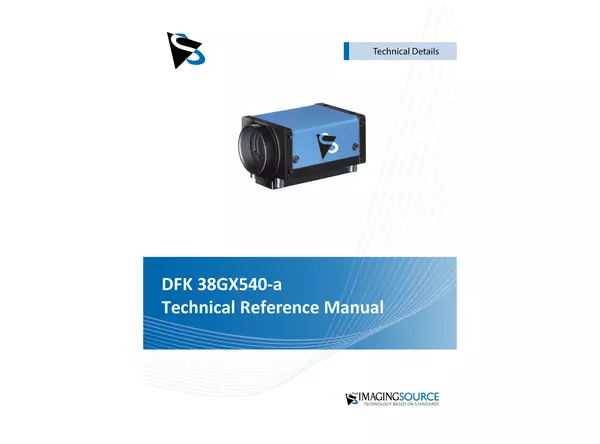

DFK 38GX540-a Technical Reference Manual
