- 37U Series Color Board Camera
- USB 3.1 Interface, Power via USB
- 1/1.8 inch onsemi CMOS AR2020 Sensor
- 5,120×3,840 (19.7 MP), up to 19 fps
- Pixel Size: H: 1.4 µm, V: 1.4 µm
- Rolling Shutter
- Trigger and I/O Inputs
- Only 30×30×15 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Vision Standard |  |
| Dynamic Range | 10 bit |
| Resolution | 5,120×3,840 (19.7 MP) |
| Frame Rate | 19 fps |
| Video Output Format | 8-Bit Bayer (GR), 10-Bit Bayer Packed (GR), 16-Bit Bayer (GR) |
| Interface (Optical) | |
| Sensor Type | CMOS |
| Sensor Specification | onsemi AR2020 |
| Shutter | Rolling |
| Format | 1/1.8 inch |
| Pixel Size | H: 1.4 µm, V: 1.4 µm |
| Lens Mount | M12x0.5, optional |
| Interface (Electrical) | |
| Interface | USB 3.1, Power via USB |
| Supply Voltage | 4.75 VDC to 5.25 VDC |
| Current Consumption | Approx. 280 mA @ 5 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 30 mm, W: 30 mm, L: 15 mm |
| Mass | 7 g |
| Adjustments | |
| Shutter | 30 µs to 1 s |
| Gain | 0 dB to 47.62 dB |
| Environmental | |
| Temperature (Operating) | -5 °C to 45 °C |
| Temperature (Storage) | -20 °C to 60 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
DFM 37UR2020-ML Data Sheet | | 1.0 | Mar 2025 |
 |

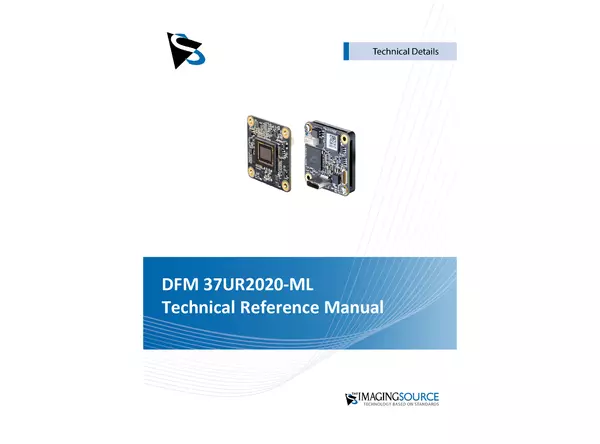

DFM 37UR2020-ML Technical Reference Manual | | 1.1 | Apr 2025 |
 |
The Imaging Source Catalog | New | 2025.11 | Nov 2025 |
 |
Dimensional Diagrams 2.0 for all Industrial Board Cameras | | 2.0 | Oct 2015 |
 |
STEP File (dxm37ur2020ml) | | 1.0 | Mar 2025 |
 |
