- 47G Series Color Board Camera
- GigE Interface (RJ45), PoE
- 1/3.1 inch Sony Pregius S IMX900 Sensor
- 2,048×1,536 (3.1 MP), up to 36 fps
- Pixel Size: H: 2.25 µm, V: 2.25 µm
- Global Shutter
- Trigger and I/O Inputs
- Only 39×40×34 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Dynamic Range | 12 bit |
| Resolution | 2,048×1,536 (3.1 MP) |
| Frame Rate | 36 fps |
| Video Output Format | 8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG), YUV 4:2:2, YUV 4:1:1, YUV 4:1:1, RGB24, 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome |
| Interface (Optical) | |
| IR-Cut Filter | (available without IR-Cut Filter on request) |
| Sensor Type | Pregius S |
| Sensor Specification | Sony IMX900 |
| Shutter | Global |
| Format | 1/3.1 inch |
| Pixel Size | H: 2.25 µm, V: 2.25 µm |
| Lens Mount | C |
| Interface (Electrical) | |
| Interface | GigE, PoE |
| Supply Voltage | POE: 48 VDC to 56 VDC |
| Power Consumption: | 2.3 W PoE |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 39 mm, W: 40 mm, L: 34 mm |
| Mass | 46 g |
| Adjustments | |
| Shutter | 15 µs to 1 s |
| Gain | 0 dB to 48 dB |
| Environmental | |
| Board Temperature (Operating) | 0 °C to 70 °C |
| Temperature (Storage) | -20 °C to 80 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
DFM 47GX900-P Data Sheet | | 1.0 | Feb 2025 |
 |

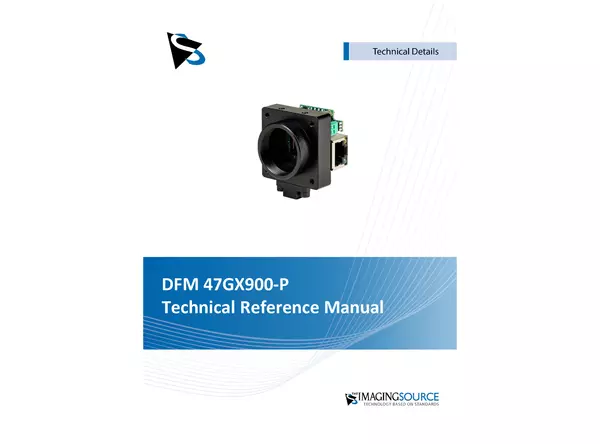

DFM 47GX900-P Technical Reference Manual | | 1.1 | Apr 2025 |
 |
