DMM 42BUC03-ML

2U Series

​ Get Quotation

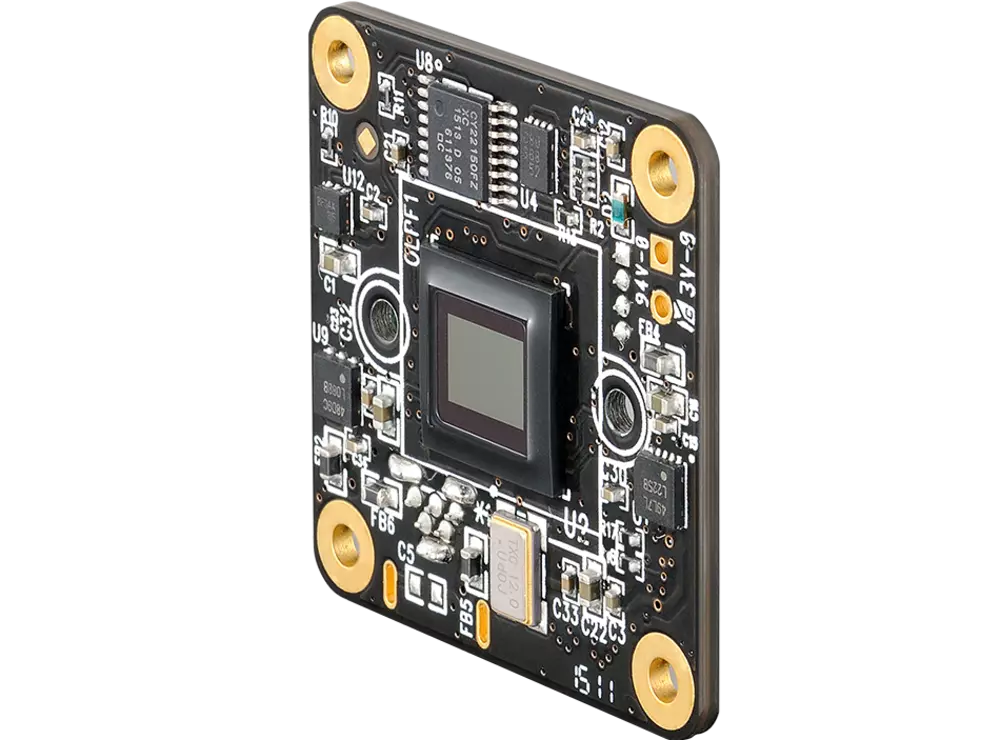

  • 2U Series Monochrome Board Camera
  • USB 2.0 Interface, Power via USB
  • 1/3 inch onsemi CMOS AR0134 Sensor
  • 1,280×960 (1.2 MP), up to 25 fps
  • Pixel Size: H: 3.75 µm, V: 3.75 µm
  • Global Shutter
  • Trigger and I/O Inputs
  • Only 30×30×15 mm
  • Specification

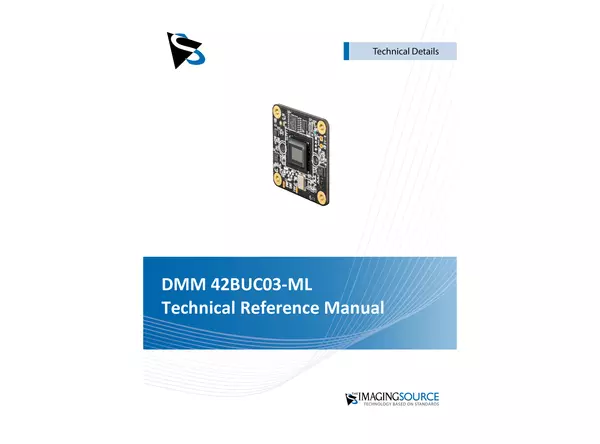

  • Documentation
  • Downloads
  • Cables
  • Optics
General Behavior
Dynamic Range 8 bit
Video Formats @ Frame Rate (maximum) 1,280×960 (1.2 MP) Y800 @ 25 fps
1,280×960 (1.2 MP) RGB24 @ 25 fps
Interface (Optical)
Sensor Type CMOS
Sensor Specification ​ onsemi AR0134
Shutter Global
Format 1/3 inch
Pixel Size H: 3.75 µm, V: 3.75 µm
Lens Mount M12x0.5, optional
Interface (Electrical)
Interface USB 2.0 (forwards compatible), Power via USB
Supply Voltage 4.5 VDC to 5.5 VDC
Current Consumption Approx. 250 mA @ 5 VDC
Auto-Iris Control ​
Trigger ​
I/O ​
Interface (Mechanical)
Dimensions H: 30 mm, W: 30 mm, L: 15 mm
Mass 7 g
Adjustments
Shutter 1/10,000 s to 30 s
Gain 0 dB to 18 dB
Environmental
Temperature (Operating) -5 °C to 45 °C
Temperature (Storage) -20 °C to 60 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
