- 47G Series Color Board Camera
- GigE Interface (RJ45)
- 1/2.5 inch onsemi CMOS AR0521 Sensor
- 2,592×1,944 (5 MP), up to 22 fps
- Pixel Size: H: 2.2 µm, V: 2.2 µm
- Rolling Shutter
- Trigger and I/O Inputs
- Only 39×40×33 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Dynamic Range | 12 bit |
| Resolution | 2,592×1,944 (5 MP) |
| Frame Rate | 22 fps |
| Video Output Format | 8-Bit Bayer (GR), 12-Bit Bayer Packed (GR), 16-Bit Bayer (GR), YUV 4:2:2, YUV 4:1:1, YUV 4:1:1, RGB24, 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome |
| Interface (Optical) | |
| IR-Cut Filter | (available without IR-Cut Filter on request) |
| Sensor Type | CMOS |
| Sensor Specification | onsemi AR0521 |
| Shutter | Rolling |
| Format | 1/2.5 inch |
| Pixel Size | H: 2.2 µm, V: 2.2 µm |
| Lens Mount | C |
| Interface (Electrical) | |
| Interface | GigE |
| Supply Voltage | 4.75 VDC to 25 VDC |
| Current Consumption | Approx. 150 mA @ 12 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 39 mm, W: 40 mm, L: 33 mm |
| Mass | 38 g |
| Adjustments | |
| Shutter | 100 µs to 10 s |
| Gain | 0 dB to 11.81 dB |
| Environmental | |
| Board Temperature (Operating) | 0 °C to 70 °C |
| Temperature (Storage) | -20 °C to 80 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
DFM 47GR0521 Data Sheet | | 1.0 | Nov 2024 |
 |

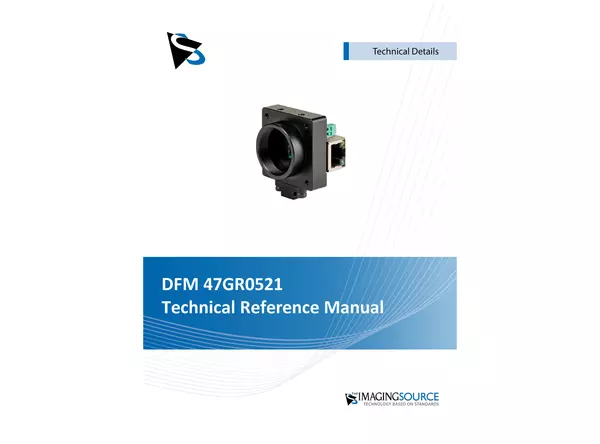

DFM 47GR0521 Technical Reference Manual | | 1.3 | Apr 2025 |
 |
The Imaging Source Catalog | New | 2025.10 | Oct 2025 |
 |
Datasheet for onsemi AR0521 CMOS Sensor | | 1.0 | Feb 2023 |
 |
STEP File (DxM 47GR0521) | | 1.0 | Sep 2024 |
 |
GenTL Producer for GigE Vision Cameras (Windows / Linux) | New | 1.5.2.1108 |  |
Oct 2025 |
 |
GenTL Producer for USB3 Vision Cameras (Windows / Linux) | New | 1.5.2.818 | |
Oct 2025 |
 |
GenTL Producer for Non-GenICam Cameras (DirectShow) | | 2.0.0.390 | |
Mar 2024 |
 |
GenTL Producer for Non-GenICam Cameras (V4L2) | | 1.0.0.144 | |
Jan 2025 |
 |
Device Driver for GigE Cameras | | 3.8.0.4597 | |
Feb 2022 |
 |
IC Imaging Control 4 SDK (Windows / Linux) | New | 1.4.0.3240 | |
Oct 2025 |
 |
IC Imaging Control C++ Class Library for C++ Projects | | 3.5.7 | |
Dec 2022 |
 |
IC Imaging Control .NET Component for C# and VB.NET Projects | | 3.5.7 | |
Dec 2022 |
 |
IC Imaging Control C Library | | 3.4.0.51 | |
Nov 2017 |
 |
IC Barcode - 1D and 2D Barcode Reader for IC Imaging Control | | 1.1.0.704 | |
Mar 2021 |
 |
IC Barcode for Linux AMD64/x64 | | 1.1.0.703 |  |
Mar 2021 |
 |
IC Barcode for Linux ARM 64 Bit | | 1.1.0.703 | |
Mar 2021 |
 |
tiscamera Camera Library for Ubuntu 18.04 and 22.04 64 Bit on x64 Architecture | | 1.1.1.4142 | |
Apr 2023 |
 |
tiscamera Camera Library for Ubuntu 20.04 64 Bit on x64 Architecture | | 1.1.1.4142 | |
Apr 2023 |
 |
tiscamera Camera Library for ARM 64 Ubuntu 18.04 and 22.04 64 Bit | | 1.1.1.4142 | |
Apr 2023 |
 |
tiscamera Camera Library for ARM 64 Ubuntu 20.04 64 Bit | | 1.1.1.4142 | |
Apr 2023 |
 |
tiscamera Development Package | | 1.1.0.4139 | |
Apr 2023 |
 |
IC Capture - Image Acquisition and Image Measurement | | 4.0.1.539 | |
May 2025 |
 |
IC Measure - Manual On-Screen Image Measurement and Image Acquisition | | 4.0.0.219 | |
May 2024 |
 |
IC Measure for AMD 64 Linux | | 3.0.0.503 | |
Jun 2023 |
 |
IC Measure for ARM 64 Linux | | 3.0.0.503 | |
Jun 2023 |
 |
tcamdutils for Linux on x64 | | 1.0.0.560 | |
Jun 2022 |
 |
tcamdutils for Linux ARM64 | | 1.0.0.560 | |
Jun 2022 |
 |
tcamdutils-cuda GPU Enhanced Processing on NVIDIA® Tegra | | 1.2.0.397 | |
Jul 2022 |
 |
tcamtegrasrc for MIPI and FPD Link Cameras on NVIDIA® Tegra | | 1.2.0.398 | |
Jul 2022 |
 |
tiscamera Linux 32 Bit Camera Library for ARMHF Architecture | | 1.1.0.4139 | |
Apr 2023 |
 |
tcamdutils 32 Bit for Raspberry PI OS | | 1.0.0.560 | |
Jun 2022 |
 |
Raspberry PI GStreamer Source for The Imaging Source MIPI Cameras | | 1.3.0.662 | |
Jan 2023 |
 |
tcamprop for Raspberry PI OS | | 0.1.0 | |
Mar 2021 |
|
tiscamera Camera Library for Ubuntu 18.04 and 22.04 64 Bit on x64 Architecture | | 1.1.1.4142 | |
Apr 2023 |
|
tiscamera Camera Library for Ubuntu 20.04 64 Bit on x64 Architecture | | 1.1.1.4142 | |
Apr 2023 |
|
tiscamera Camera Library for ARM 64 Ubuntu 18.04 and 22.04 64 Bit | | 1.1.1.4142 | |
Apr 2023 |
|
tiscamera Camera Library for ARM 64 Ubuntu 20.04 64 Bit | | 1.1.1.4142 | |
Apr 2023 |
 |
TWAIN Source for IC Imaging Control | | 3.0.0.144 | |
Feb 2021 |
 |
Cognex VisionPro AIK Plugin for IC Imaging Control | | 3.4.2.0 | |
Jul 2019 |
 |
LabVIEW Extension for IC Imaging Control | | 3.4.0.41 | |
Sep 2019 |
 |
IC Matlab Plugin for Matlab R2013b and Newer Versions | | 3.4.0.58 | |
Nov 2017 |
 |
IC NeuroCheck Driver for NeuroCheck 6.2 | | 1.1.0.122 | |
Jun 2021 |
 |
IC Express - High-Speed Image Capture Into Single Image Files | | 1.1.0.23 | |
Jul 2019 |
 |
Processor Idle State Manager | | 2.2.0.2 | |
Mar 2014 |
 |
Hot Pixel Correction | | 4.0. | |
Jul 2019 |
 |
IC Fullscreen Presenter - Video display on the entire screen | | 1.3.0.0 | |
Jan 2023 |
 |
IC Line Profiler | | 1.1.0.9 | |
Aug 2014 |
 |
Footswitch Software for IC Capture | | 1.0.0.9 | |
Sep 2014 |
 |
Demo Image for NVIDIA® Jetson Nano™ Development Kits | | 1.0.5 | |
Feb 2022 |
 |
Demo Image for NVIDIA® Jetson Xavier NX™ Development Kits | | 1.0.5 | |
Feb 2022 |
 |
Demo Image for Raspberry Pi 4 B Development Kits | | 1.0.0 | |
Mar 2021 |
Optics
The Imaging Source offers high-performance lenses, extensions tubes and filters. Our technical sales team is available to assist you with component selection for your project. Read More
