DFK 33GX226

33G Series

Get Quotation

  • 33G Series Color Industrial Camera
  • GigE Interface (RJ45)
  • 1/1.7 inch Sony CMOS STARVIS IMX226 Sensor
  • 4,000×3,000 (12 MP), up to 9 fps
  • Pixel Size: H: 1.85 µm, V: 1.85 µm
  • Rolling Shutter
  • Trigger and I/O Inputs
  • Casing Compatible to Most Analog Cameras
  • Only 29×29×57 mm
  • Specification

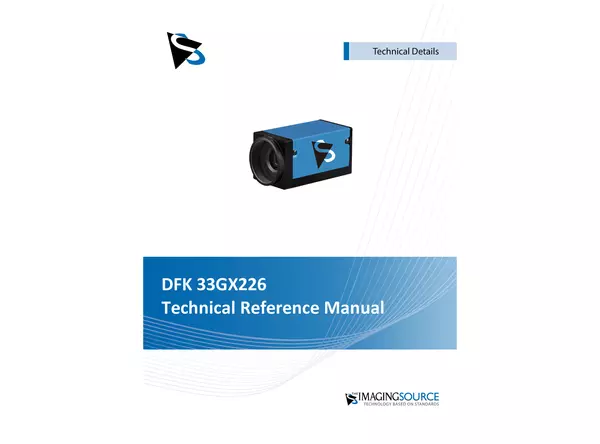

  • Documentation
  • Downloads
  • Cables
General Behavior
Vision Standard GigE Vision
Dynamic Range 12 bit
Resolution 4,000×3,000 (12 MP)
Frame Rate 9 fps
Video Output Format 8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG), YUV 4:2:2, YUV 4:1:1, RGB24
Interface (Optical)
IR-Cut Filter
Sensor Type CMOS STARVIS
Sensor Specification Sony IMX226
Shutter Rolling
Format 1/1.7 inch
Pixel Size H: 1.85 µm, V: 1.85 µm
Lens Mount C/CS
Interface (Electrical)
Interface Gigabit Ethernet (RJ45)
Supply Voltage 11 VDC to 13 VDC or POE: 48 VDC to 56 VDC
Current Consumption Approx. 400 mA @ 12 VDC
Auto-Iris Control
Trigger
I/O
Interface (Mechanical)
Dimensions H: 29 mm, W: 29 mm, L: 57 mm
Mass 65 g
Adjustments
Shutter 50 µs to 30 s
Gain 0 dB to 27.04 dB
Environmental
Housing Temperature (Operating) -5 °C to 50 °C
Temperature (Storage) -20 °C to 80 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
