DMK 33GX178

33G Series

Please sign in or register an account to view pricing.

​ Get Quotation

  • 33G Series Monochrome Industrial Camera
  • GigE Interface (RJ45), PoE
  • 1/1.8 inch Sony CMOS STARVIS IMX178 Sensor
  • 3,072×2,048 (6.3 MP), up to 19 fps
  • Pixel Size: H: 2.4 µm, V: 2.4 µm
  • Sensor Size: 7,4 mm x 4,9 mm
  • Sensor Diagonal: 8,9 mm
  • Rolling Shutter
  • Trigger and I/O Inputs
  • Only 29×29×57 mm
  • Specification

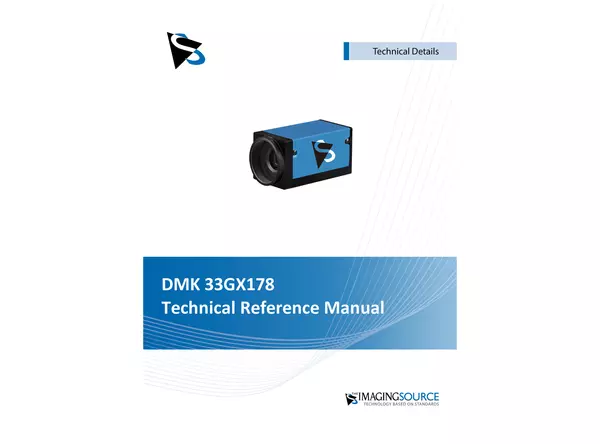

  • Documentation
  • Downloads
  • Cables
  • Optics
General Behavior
Vision Standard GigE Vision
Dynamic Range 12 bit
Resolution 3,072×2,048 (6.3 MP)
Frame Rate 19 fps
Video Output Format 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
Ingress Protection
Protection Rating IP40 (with a suitable lens, a data cable with screw lock, and an I/O trigger cable installed)
Interface (Optical)
Sensor Type CMOS STARVIS
Sensor Specification ​ Sony IMX178
Shutter Rolling
Format 1/1.8 inch
Pixel Size H: 2.4 µm, V: 2.4 µm
Sensor Size H: 7,4 mm, V: 4,9 mm
Sensor Diagonal 8,9 mm
Lens Mount C/CS
Interface (Electrical)
Interface Gigabit Ethernet (RJ45), PoE
Supply Voltage 11 VDC to 13 VDC or POE: 48 VDC to 56 VDC
Current Consumption Approx. 400 mA @ 12 VDC
Auto-Iris Control ​
Trigger ​
I/O ​
Interface (Mechanical)
Dimensions H: 29 mm, W: 29 mm, L: 57 mm
Mass 65 g
Adjustments
Shutter 20 µs to 60 s
Gain 0 dB to 48 dB
Environmental
Housing Temperature (Operating) -5 °C to 50 °C
Temperature (Storage) -20 °C to 80 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
