DFK 38GX542-a

38G Series

Get Quotation

  • 38G Series Color Industrial Camera
  • GigE Interface
  • 1.1 inch Sony CMOS Pregius S IMX542 Sensor
  • 5,320×3,032 (16.1 MP), up to 7 fps
  • Pixel Size: H: 2.74 µm, V: 2.74 µm
  • Global Shutter
  • Trigger and I/O Inputs
  • Only 29×44×75 mm
  • Specification

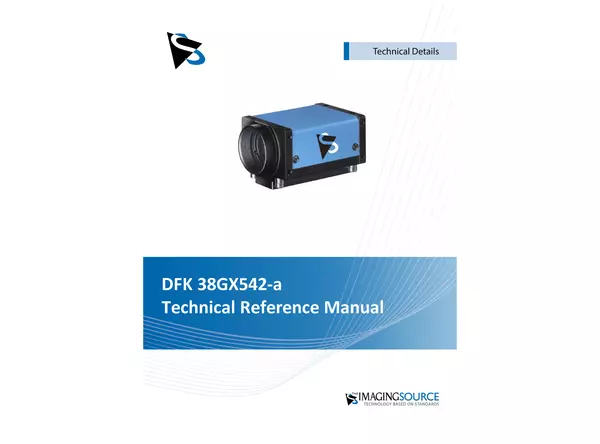

  • Documentation
  • Downloads
General Behavior
Vision Standard GigE Vision
Dynamic Range 12 bit
Resolution 5,320×3,032 (16.1 MP)
Frame Rate 7 fps
Video Output Format 8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG), YUV 4:2:2, YUV 4:1:1, RGB24
Interface (Optical)
Sensor Type CMOS Pregius S
Sensor Specification Sony IMX542
Shutter Global
Format 1.1 inch
Pixel Size H: 2.74 µm, V: 2.74 µm
Lens Mount C (CS optional)
Interface (Electrical)
Interface Gigabit Ethernet (RJ45)
Supply Voltage 9 VDC to 27 VDC or POE: 48 VDC to 56 VDC
Current Consumption Approx. 400 mA @ 12 VDC
Auto-Iris Control
Trigger
I/O
Interface (Mechanical)
Dimensions H: 29 mm, W: 44 mm, L: 75 mm
Mass 165 g
Adjustments
Shutter 2 µs to 30 s
Gain 0 dB to 48 dB
Environmental
Temperature (Operating) -5 °C to 45 °C
Temperature (Storage) -20 °C to 60 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
