- 38G Series Monochrome Industrial Camera
- GigE Interface (RJ45), PoE
- 1.1 inch Sony CMOS Pregius S IMX541 Sensor
- 4,504×4,504 (20.3 MP), up to 5 fps
- Pixel Size: H: 2.74 µm, V: 2.74 µm
- Sensor Size: 12,3 mm x 12,3 mm
- Sensor Diagonal: 17,5 mm
- Global Shutter
- Trigger and I/O Inputs
- Only 29×44×75 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Vision Standard |  |
| Dynamic Range | 12 bit |
| Resolution | 4,504×4,504 (20.3 MP) |
| Frame Rate | 5 fps |
| Video Output Format | 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome |
| Ingress Protection | |
| Protection Rating | IP40 (with a suitable lens, a data cable with screw lock, and an I/O trigger cable installed) |
| Interface (Optical) | |
| Sensor Type | CMOS Pregius S |
| Sensor Specification | Sony IMX541 |
| Shutter | Global |
| Format | 1.1 inch |
| Pixel Size | H: 2.74 µm, V: 2.74 µm |
| Sensor Size | H: 12,3 mm, V: 12,3 mm |
| Sensor Diagonal | 17,5 mm |
| Lens Mount | C (CS optional) |
| Interface (Electrical) | |
| Interface | Gigabit Ethernet (RJ45), PoE |
| Supply Voltage | 9 VDC to 27 VDC or POE: 48 VDC to 56 VDC |
| Current Consumption | Approx. 400 mA @ 12 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 29 mm, W: 44 mm, L: 75 mm |
| Mass | 165 g |
| Adjustments | |
| Shutter | 2 µs to 30 s |
| Gain | 0 dB to 48 dB |
| Environmental | |
| Housing Temperature (Operating) | -5 °C to 50 °C |
| Temperature (Storage) | -20 °C to 80 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
DMK 38GX541-a Data Sheet | | 1.0 | Nov 2024 |
 |
Industrial Cameras Operating Instructions | | 1.1 | Dec 2025 |
 |

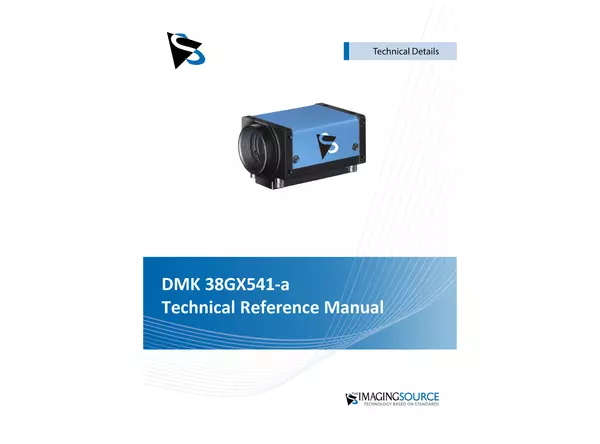

DMK 38GX541-a Technical Reference Manual | | 1.4 | Apr 2025 |
 |
