ViM 47GX676-I67

Visus IP67

​ Get Quotation

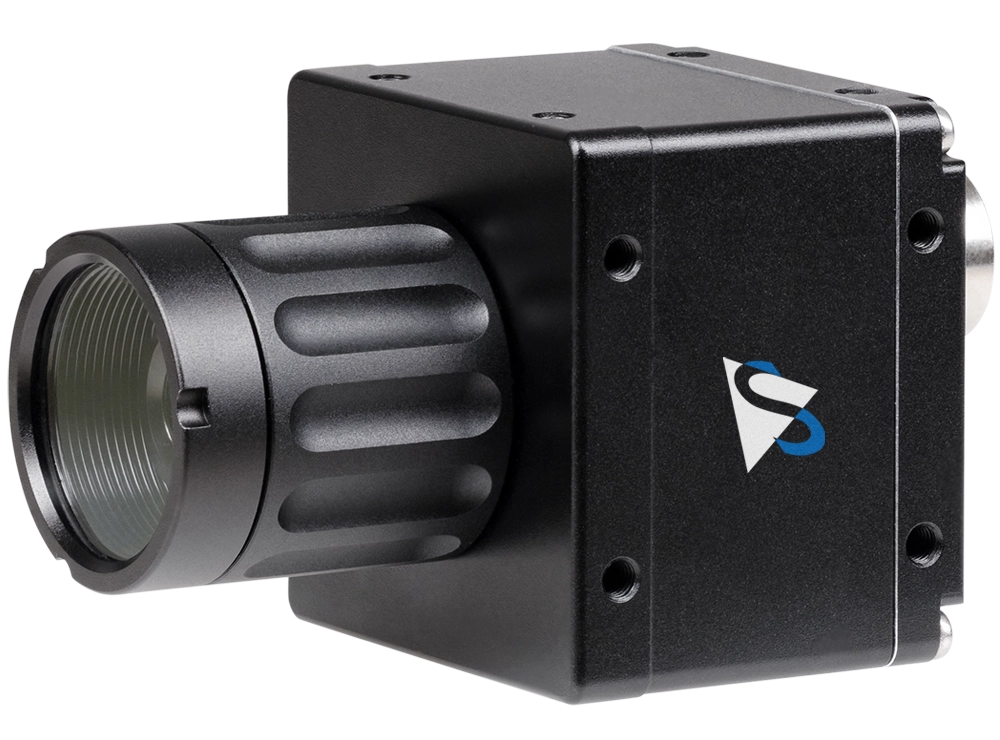

  • Visus IP67 Monochrome Industrial Camera
  • GigE Interface (M12, PoE)
  • 1/1.6 inch Sony STARVIS 2 IMX676 Sensor
  • 3,536×3,536 (12.5 MP), up to 9 fps
  • Pixel Size: H: 2 µm, V: 2 µm
  • IP6K6 and IP6K7 Compliant (ISO 20653)
  • Rolling Shutter
  • Trigger and I/O Inputs
  • Only 43×43×34.5 mm
  • Optionally available with tripod adapter
  • IP67 Tube and S-Ultra M12 lens must be ordered separately
  • Specification

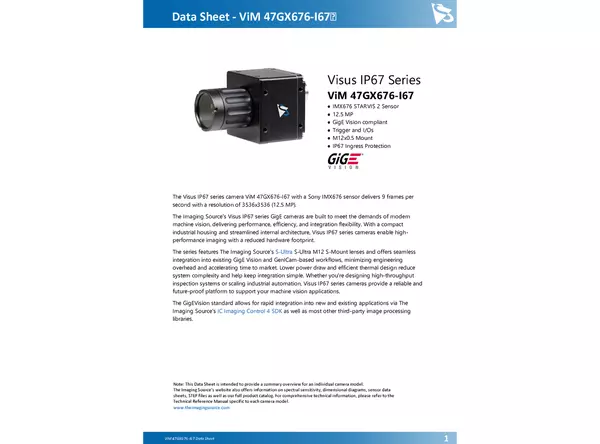

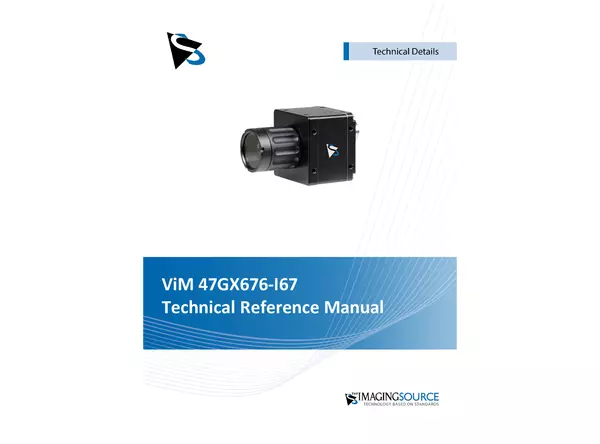

  • Documentation
  • Downloads
  • Cables
  • Optics
General Behavior
Dynamic Range 12 bit
Resolution 3,536×3,536 (12.5 MP)
Frame Rate 9 fps
Video Output Format 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
Ingress Protection
Protection Rating IP6K6 and IP6K7
ISO Standard ISO 20653
Solid Particle Protection 6K (maximum protection)
Liquid Ingress Protection 6 (powerful water jets)
Additional Liquid Ingress Protection 7 (immersion up to 1 m)
Interface (Optical)
Sensor Type STARVIS 2
Sensor Specification Sony IMX676
Shutter Rolling
Format 1/1.6 inch
Pixel Size H: 2 µm, V: 2 µm
Sensor Size H: 7,1 mm, V: 7,1 mm
Sensor Diagonal 10,0 mm
Lens Mount M12x0.5
Lens Tube IP67 Tube must be ordered separately
M12 Lens S-Ultra M12 lens must be ordered separately
Interface (Electrical)
Interface GigE
Supply Voltage 4.75 VDC to 14 VDC or POE: 48 VDC to 56 VDC
Power Consumption: 2.6 W PoE
Current Consumption Approx. 170 mA @ 12 VDC
Auto-Iris Control ​
Trigger ​
I/O ​
Interface (Mechanical)
Dimensions H: 43 mm, W: 43 mm, L: 34.5 mm
Mass 110 g
Adjustments
Shutter 50 µs to 60 s
Gain 0 dB to 72 dB
Shock & Vibration
Vibration, Sinusoidal DIN EN 60068-2-6:2008-10
Vibration, Broadband Random DIN EN 60068-2-64:2020-09
Shock DIN EN 60068-2-27:2010-02
Environmental
Housing Temperature (Operating) 0 °C to 50 °C
Temperature (Storage) -20 °C to 80 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.

Device Driver for GigE Cameras ​ 3.9.0.4670 Windows Oct 2025

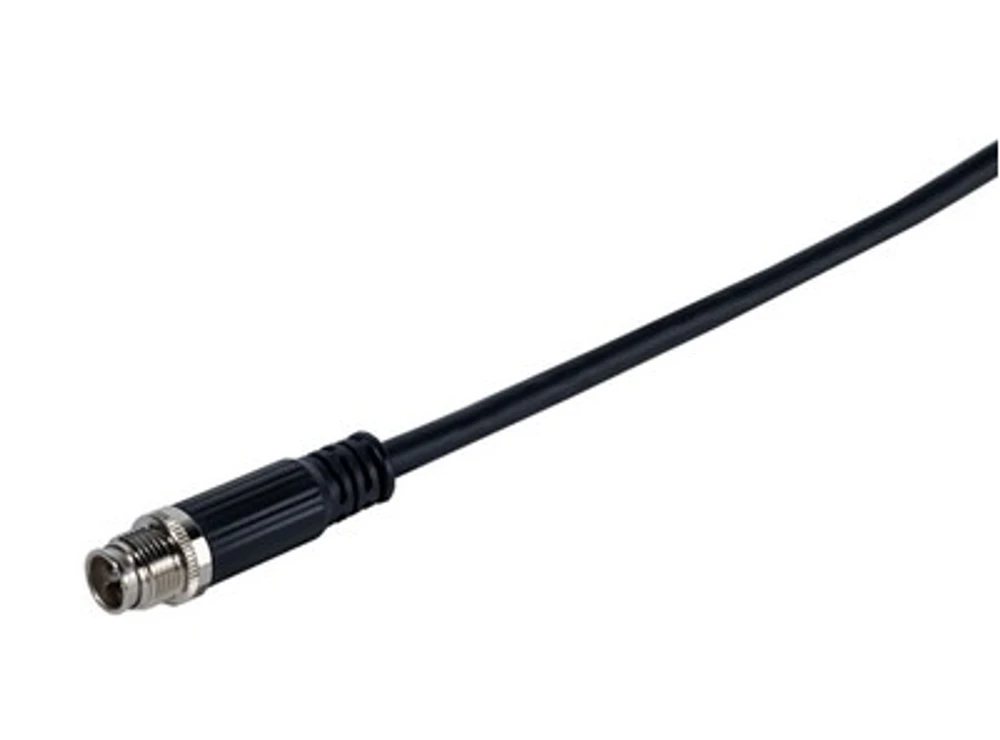

CA-GigE/CAT6A/IP67/M12/RJ45/3
