DMK AFUX236-M12

AFU Series

​ Get Quotation

  • AFU Series Monochrome Autofocus Camera
  • USB 3.0 Interface, Power via USB
  • 1/2.8 inch Sony CMOS IMX236LLJ Sensor
  • 1,920×1,200 (2.3 MP), up to 54 fps
  • Pixel Size: H: 2.8 µm, V: 2.8 µm
  • Rolling Shutter
  • Only 36×36×30 mm
  • Specification

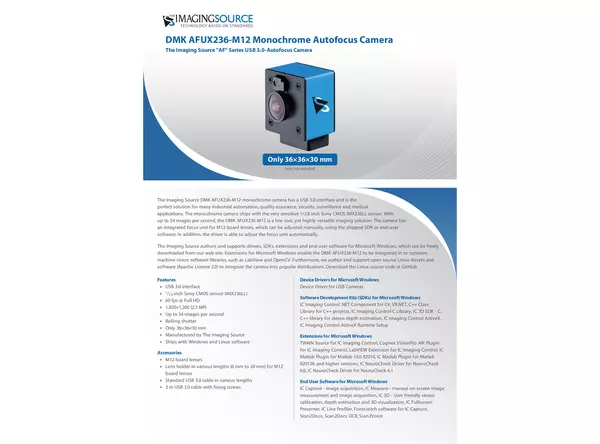

  • Documentation
  • Downloads
  • Cables
  • Optics
General Behavior
Dynamic Range 8/12 bit
Video Formats @ Frame Rate (maximum) 1,920×1,200 (2.3 MP) Y800 @ 54 fps
1,920×1,200 (2.3 MP) Y16 @ 27 fps
Interface (Optical)
Sensor Type CMOS
Sensor Specification Sony IMX236LLJ
Shutter Rolling
Format 1/2.8 inch
Pixel Size H: 2.8 µm, V: 2.8 µm
Lens Mount M12x0.5 (motorized mount)
Interface (Electrical)
Interface USB 3.0, Power via USB
Supply Voltage 4.5 VDC to 5.5 VDC
Current Consumption Approx. 250 mA @ 5 VDC
Auto-Iris Control ​
Trigger ​
I/O ​
Interface (Mechanical)
Dimensions H: 36 mm, W: 36 mm, L: 30 mm
Mass 70 g
Adjustments
Shutter 15 µs to 30 s
Gain 0 dB to 36 dB
Environmental
Temperature (Operating) -5 °C to 45 °C
Temperature (Storage) -20 °C to 60 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
