DFK 39GX548-Z20

Z Series

Get Quotation

  • Z Series Color Zoom Camera
  • GigE Interface (RJ45)
  • 1/1.8 inch Sony CMOS Pregius S IMX548 Sensor
  • Motor Zoom: 6.8 mm to 136 mm
  • 2,448×2,048 (5 MP), up to 24 fps
  • Pixel Size: H: 2.74 µm, V: 2.74 µm
  • Global Shutter
  • Trigger and I/O Inputs
  • Only 71×71×147 mm
  • Specification

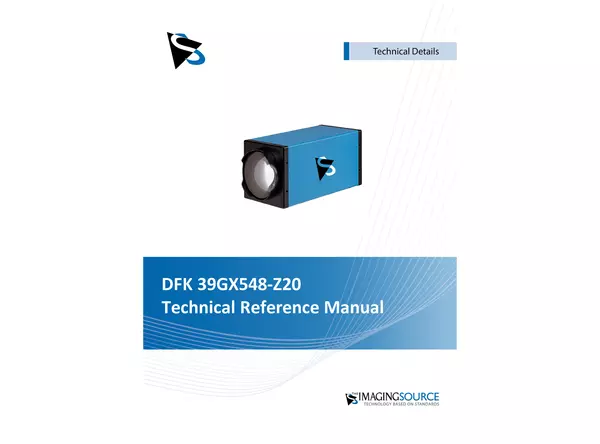

  • Documentation
  • Downloads
  • Cables
General Behavior
Vision Standard GigE Vision
Dynamic Range 12 bit
Resolution 2,448×2,048 (5 MP)
Frame Rate 24 fps
Video Output Format 8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG), YUV 4:2:2, YUV 4:1:1, RGB24
Interface (Optical)
IR-Cut Filter (removable)
Sensor Type CMOS Pregius S
Sensor Specification Sony IMX548
Shutter Global
Format 1/1.8 inch
Pixel Size H: 2.74 µm, V: 2.74 µm
Focal Length 6.8 mm (wide) to 136 mm (tele)
F-Stop 1.5 (wide) to 3.4 (tele)
MOD 1 cm (wide) to 90 cm (tele)
Focus Automatic and Manual
Iris Automatic and Manual
Lens Integrated
Interface (Electrical)
Interface Gigabit Ethernet (RJ45)
Supply Voltage 9 VDC to 27 VDC or POE: 48 VDC to 56 VDC
Current Consumption Approx. 400 mA @ 12 VDC
Auto-Iris Control
Trigger
I/O
Interface (Mechanical)
Dimensions H: 71 mm, W: 71 mm, L: 147 mm
Mass 691 g
Adjustments
Shutter 2 µs to 30 s
Gain 0 dB to 48 dB
Environmental
Housing Temperature (Operating) -5 °C to 45 °C
Temperature (Storage) -20 °C to 60 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
