- 37U Series Monochrome Board Camera
- USB 3.1 Interface, Power via USB
- 1/2.5 inch onsemi CMOS AR0521 Sensor
- 2,592×1,944 (5 MP), up to 60 fps
- Pixel Size: H: 2.2 µm, V: 2.2 µm
- Rolling Shutter
- Trigger and I/O Inputs
- Only 30×30×15 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Vision Standard |  |
| Dynamic Range | 12 bit |
| Resolution | 2,592×1,944 (5 MP) |
| Frame Rate | 60 fps |
| Video Output Format | 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome |
| Interface (Optical) | |
| Sensor Type | CMOS |
| Sensor Specification | onsemi AR0521 |
| Shutter | Rolling |
| Format | 1/2.5 inch |
| Pixel Size | H: 2.2 µm, V: 2.2 µm |
| Lens Mount | M12x0.5, optional |
| Interface (Electrical) | |
| Interface | USB 3.1, Power via USB |
| Supply Voltage | 4.75 VDC to 5.25 VDC |
| Current Consumption | Approx. 310 mA @ 5 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 30 mm, W: 30 mm, L: 15 mm |
| Mass | 7 g |
| Adjustments | |
| Shutter | 100 µs to 30 s |
| Gain | 0 dB to 11.81 dB |
| Environmental | |
| Temperature (Operating) | -5 °C to 45 °C |
| Temperature (Storage) | -20 °C to 60 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
DMM 37UR0521-ML Data Sheet | | 1.0 | Nov 2024 |
 |

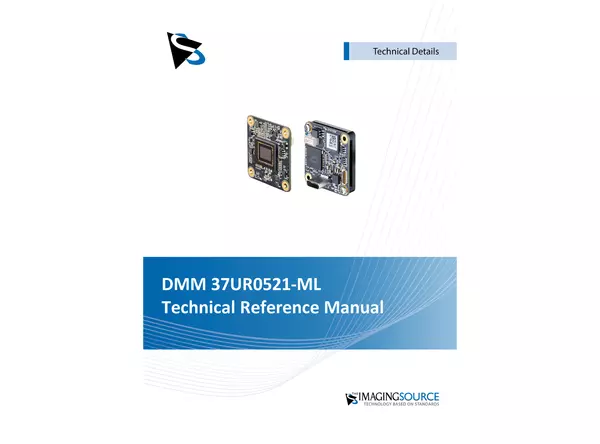

DMM 37UR0521-ML Technical Reference Manual | | 1.2 | Apr 2025 |
 |
