- 47G Series Monochrome Board Camera
- GigE Interface (RJ45)
- 1/2.5 inch onsemi CMOS AR0521 Sensor
- 2,592×1,944 (5 MP), up to 22 fps
- Pixel Size: H: 2.2 µm, V: 2.2 µm
- Sensor Size: 5,7 mm x 4,3 mm
- Sensor Diagonal: 7,1 mm
- Rolling Shutter
- Trigger and I/O Inputs
- Only 39×40×33 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Dynamic Range | 12 bit |
| Resolution | 2,592×1,944 (5 MP) |
| Frame Rate | 22 fps |
| Video Output Format | 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome |
| Interface (Optical) | |
| Sensor Type | CMOS |
| Sensor Specification | onsemi AR0521 |
| Shutter | Rolling |
| Format | 1/2.5 inch |
| Pixel Size | H: 2.2 µm, V: 2.2 µm |
| Sensor Size | H: 5,7 mm, V: 4,3 mm |
| Sensor Diagonal | 7,1 mm |
| Lens Mount | C |
| Interface (Electrical) | |
| Interface | GigE |
| Supply Voltage | 4.75 VDC to 25 VDC |
| Current Consumption | Approx. 150 mA @ 12 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 39 mm, W: 40 mm, L: 33 mm |
| Mass | 38 g |
| Adjustments | |
| Shutter | 100 µs to 10 s |
| Gain | 0 dB to 17.81 dB |
| Environmental | |
| Board Temperature (Operating) | 0 °C to 70 °C |
| Temperature (Storage) | -20 °C to 80 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
DMM 47GR0521 Data Sheet | | 1.0 | Nov 2024 |
 |

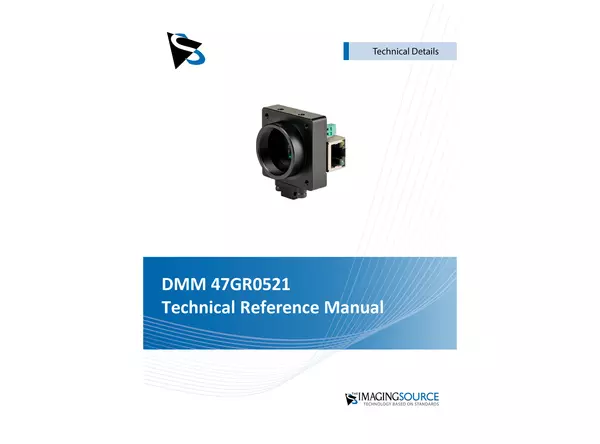

DMM 47GR0521 Technical Reference Manual | | 1.3 | Apr 2025 |
 |
