- 47G Series Monochrome Board Camera
- GigE Interface (RJ45), PoE
- 1/3.1 inch Sony Pregius S IMX900 Sensor
- 2,048×1,536 (3.1 MP), up to 36 fps
- Pixel Size: H: 2.25 µm, V: 2.25 µm
- Sensor Size: 4,6 mm x 3,5 mm
- Sensor Diagonal: 5,8 mm
- Global Shutter
- Trigger and I/O Inputs
- Only 36×38×18 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Dynamic Range | 12 bit |
| Resolution | 2,048×1,536 (3.1 MP) |
| Frame Rate | 36 fps |
| Video Output Format | 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome |
| Interface (Optical) | |
| Sensor Type | Pregius S |
| Sensor Specification | Sony IMX900 |
| Shutter | Global |
| Format | 1/3.1 inch |
| Pixel Size | H: 2.25 µm, V: 2.25 µm |
| Sensor Size | H: 4,6 mm, V: 3,5 mm |
| Sensor Diagonal | 5,8 mm |
| Lens Mount | M12x0.5, optional |
| Interface (Electrical) | |
| Interface | GigE, PoE |
| Supply Voltage | POE: 48 VDC to 56 VDC |
| Power Consumption: | 2.3 W PoE |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 36 mm, W: 38 mm, L: 18 mm |
| Mass | 20 g |
| Adjustments | |
| Shutter | 15 µs to 1 s |
| Gain | 0 dB to 48 dB |
| Environmental | |
| Board Temperature (Operating) | 0 °C to 70 °C |
| Temperature (Storage) | -20 °C to 80 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
DMM 47GX900-MLP Data Sheet | | 1.0 | Feb 2025 |
 |

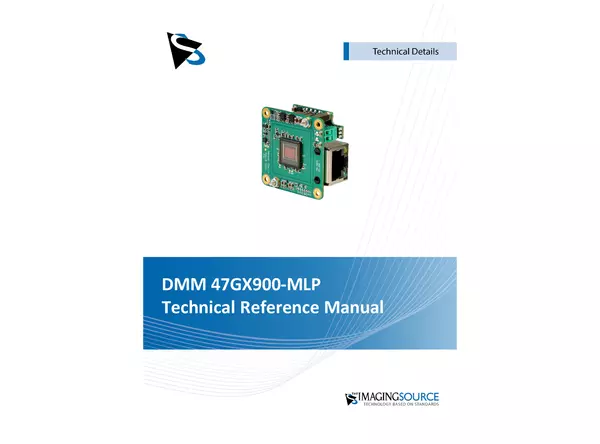

DMM 47GX900-MLP Technical Reference Manual | | 1.1 | Apr 2025 |
 |
