DFK 32AUR0521

32U Series

​ Get Quotation

  • 32U Series Color Industrial Camera
  • USB 2.0 Interface, Power via USB
  • 1/2.5 inch onsemi CMOS AR0521 Sensor
  • 2,592×1,944 (5 MP), up to 6 fps
  • Pixel Size: H: 2.2 µm, V: 2.2 µm
  • Rolling Shutter
  • Only 36×36×25 mm
  • Specification

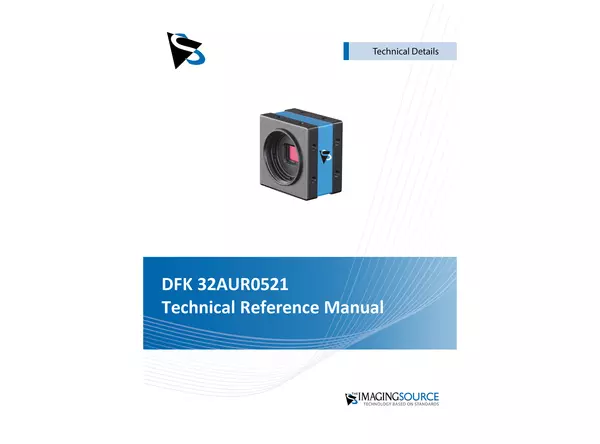

  • Documentation
  • Downloads
  • Cables
  • Optics
General Behavior
Vision Standard Compatible with The Imaging Source GenTL Producer for USB3 Vision Cameras
Dynamic Range 12 bit
Resolution 2,592×1,944 (5 MP)
Frame Rate 6 fps
Video Output Format 8-Bit Bayer (GR), 10-Bit Bayer Packed (GR), 16-Bit Bayer (GR)
Interface (Optical)
IR-Cut Filter ​ (available without IR-Cut Filter on request)
Sensor Type CMOS
Sensor Specification ​ onsemi AR0521
Shutter Rolling
Format 1/2.5 inch
Pixel Size H: 2.2 µm, V: 2.2 µm
Lens Mount C/CS
Interface (Electrical)
Interface USB 2.0 (forwards compatible), Power via USB
Supply Voltage 4.75 VDC to 5.25 VDC
Current Consumption Approx. 310 mA @ 5 VDC
Auto-Iris Control ​
Trigger ​
I/O ​
Interface (Mechanical)
Dimensions H: 36 mm, W: 36 mm, L: 25 mm
Mass 70 g
Adjustments
Shutter 100 µs to 30 s
Gain 0 dB to 11.81 dB
Environmental
Housing Temperature (Operating) -5 °C to 50 °C
Temperature (Storage) -20 °C to 80 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
