- 33U Series Monochrome Industrial Camera
- USB 3.0 Interface, Power via USB
- 1/1.1 inch Sony CMOS Pregius S IMX545 Sensor
- 4,096×3,000 (12.3 MP), up to 30 fps
- Pixel Size: H: 2.74 µm, V: 2.74 µm
- Global Shutter
- Trigger and I/O Inputs
- Only 29×29×43 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Vision Standard |  |
| Dynamic Range | 12 bit |
| Resolution | 4,096×3,000 (12.3 MP) |
| Frame Rate | 30 fps |
| Video Output Format | 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome |
| Interface (Optical) | |
| Sensor Type | CMOS Pregius S |
| Sensor Specification | Sony IMX545 |
| Shutter | Global |
| Format | 1/1.1 inch |
| Pixel Size | H: 2.74 µm, V: 2.74 µm |
| Lens Mount | C/CS |
| Interface (Electrical) | |
| Interface | USB 3.0, Power via USB |
| Supply Voltage | 4.75 VDC to 5.25 VDC |
| Current Consumption | Approx. 650 mA @ 5 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 29 mm, W: 29 mm, L: 43 mm |
| Mass | 65 g |
| Adjustments | |
| Shutter | 1 µs to 4 s |
| Gain | 0 dB to 48 dB |
| Environmental | |
| Housing Temperature (Operating) | -5 °C to 50 °C |
| Temperature (Storage) | -20 °C to 80 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
DMK 33UX545 Data Sheet | | 1.0 | Nov 2024 |
 |
Industrial Cameras Operating Instructions | New | 1.7 | Nov 2025 |
 |

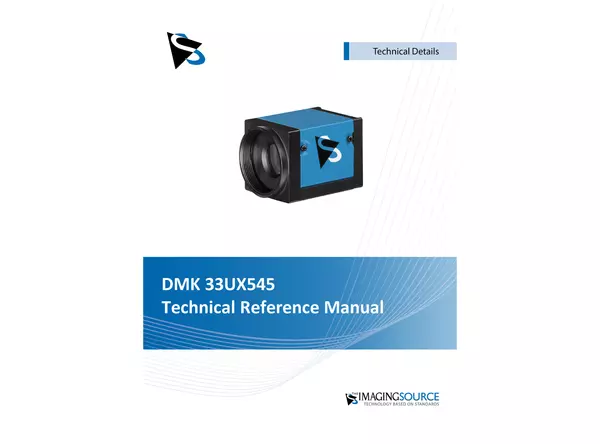

DMK 33UX545 Technical Reference Manual | | 1.2 | Apr 2025 |
 |
