- 37U Series Monochrome Industrial Camera
- USB 3.1 Interface, Power via USB
- 1/2.6 inch onsemi CMOS AR0234CS Sensor
- 1,920×1,200 (2.3 MP), up to 100 fps
- Pixel Size: H: 3 µm, V: 3 µm
- Global Shutter
- Trigger and I/O Inputs
- Only 36×36×25 mm
- Specification
- Documentation
- Downloads
- Cables
- Optics
| General Behavior | |
| Vision Standard |  |
| Dynamic Range | 10 bit |
| Resolution | 1,920×1,200 (2.3 MP) |
| Frame Rate | 100 fps |
| Video Output Format | 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome |
| Interface (Optical) | |
| Sensor Type | CMOS |
| Sensor Specification | onsemi AR0234CS |
| Shutter | Global |
| Format | 1/2.6 inch |
| Pixel Size | H: 3 µm, V: 3 µm |
| Lens Mount | C/CS |
| Interface (Electrical) | |
| Interface | USB 3.1, Power via USB |
| Supply Voltage | 4.75 VDC to 5.25 VDC |
| Current Consumption | Approx. tbd mA @ 5 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 36 mm, W: 36 mm, L: 25 mm |
| Mass | 70 g |
| Adjustments | |
| Shutter | 50 µs to 0.25 s |
| Gain | 0 dB to 6.92 dB |
| Environmental | |
| Housing Temperature (Operating) | -5 °C to 50 °C |
| Temperature (Storage) | -20 °C to 80 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
| Subject to change. | |
 |
DMK 37BUR0234 Data Sheet | | 1.0 | Nov 2024 |
 |
Industrial Cameras Operating Instructions | New | 1.6 | Jul 2025 |
 |

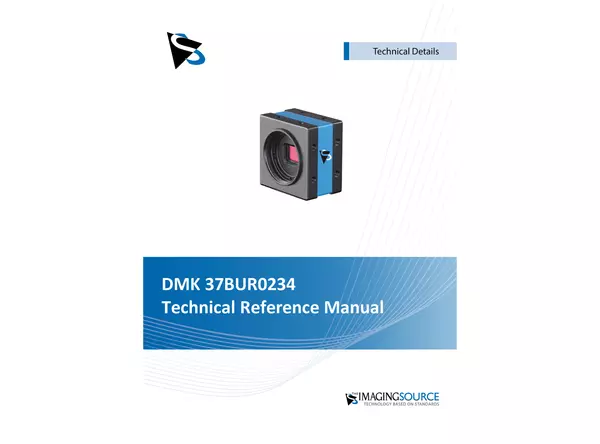

DMK 37BUR0234 Technical Reference Manual | | 1.2 | Apr 2025 |
 |
