DMM 36CX297-ML

36C Series

Get Quotation

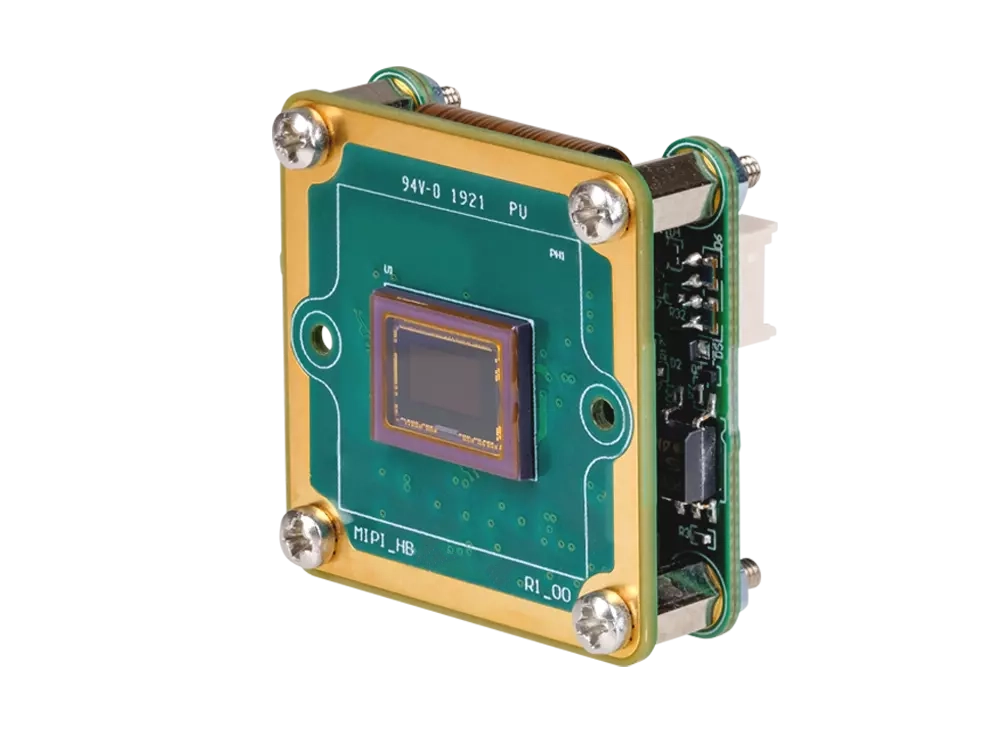

  • 36C Series Monochrome FPD-Link III Camera
  • FPD-Link III Interface
  • 1/2.9 inch Sony CMOS Pregius IMX297 Sensor
  • 720×540 (0.4 MP), up to 120 fps
  • Pixel Size: H: 6.9 µm, V: 6.9 µm
  • Global Shutter
  • Trigger and I/O Inputs
  • Only 30×30×27.5 mm
  • Specification
  • Documentation
  • Downloads
General Behavior
Dynamic Range 10 bit
Resolution 720×540 (0.4 MP)
Frame Rate 120 fps
Video Output Format 10-Bit Monochrome
Interface (Optical)
Sensor Type CMOS Pregius
Sensor Specification Sony IMX297
Shutter Global
Format 1/2.9 inch
Pixel Size H: 6.9 µm, V: 6.9 µm
Lens Mount M12x0.5
Interface (Electrical)
Interface FPD-Link III
Supply Voltage 27 VDC to 10 VDC
Current Consumption Approx. 110 mA @ 18 VDC
Auto-Iris Control
Trigger
I/O
Interface (Mechanical)
Dimensions H: 30 mm, W: 30 mm, L: 27.5 mm
Mass 12 g
Adjustments
Shutter 1 µs to 1 s
Gain 0 dB to 48 dB
Environmental
Temperature (Operating) -5 °C to 45 °C
Temperature (Storage) -20 °C to 60 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
