DMM 37UX264-ML

37U Series

Get Quotation

  • 37U Series Monochrome Board Camera
  • USB 3.1 Interface
  • 2/3 inch Sony CMOS Pregius IMX264 Sensor
  • 2,448×2,048 (5 MP), up to 38 fps
  • Pixel Size: H: 3.45 µm, V: 3.45 µm
  • Global Shutter
  • Trigger and I/O Inputs
  • Only 36×36×15 mm
  • Specification

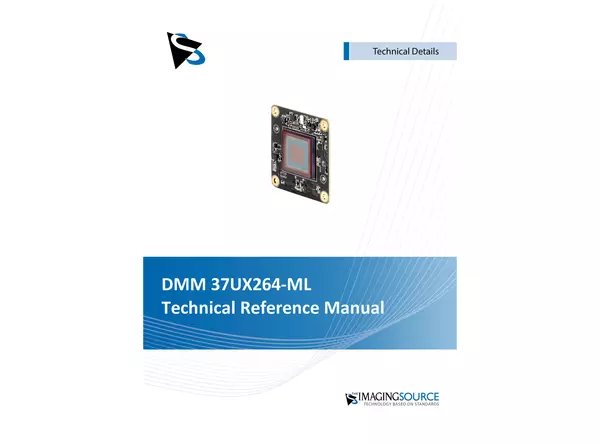

  • Documentation
  • Downloads
General Behavior
Vision Standard GigE Vision
Dynamic Range 12 bit
Resolution 2,448×2,048 (5 MP)
Frame Rate 38 fps
Video Output Format 8-Bit Monochrome, 16-Bit Monochrome
Interface (Optical)
Sensor Type CMOS Pregius
Sensor Specification Sony IMX264
Shutter Global
Format 2/3 inch
Pixel Size H: 3.45 µm, V: 3.45 µm
Lens Mount M12x0.5
Interface (Electrical)
Interface USB 3.1
Supply Voltage 4.75 VDC to 5.25 VDC
Current Consumption Approx. 360 mA @ 5 VDC
Auto-Iris Control
Trigger
I/O
Interface (Mechanical)
Dimensions H: 36 mm, W: 36 mm, L: 15 mm
Mass 7 g
Adjustments
Shutter 1 µs to 4 s
Gain 0 dB to 48 dB
Environmental
Temperature (Operating) -5 °C to 45 °C
Temperature (Storage) -20 °C to 60 °C
Humidity (Operating) 20 % to 80 % (non-condensing)
Humidity (Storage) 20 % to 95 % (non-condensing)
Subject to change.
